IO-XLR5-M-BH

Active

IO Audio Technologies

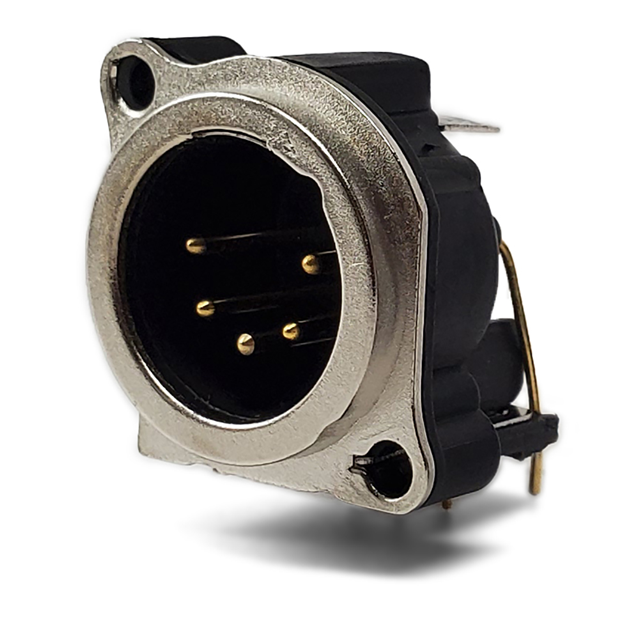

XLR CONNECTOR, R/A, 5 CONTACTS, PLUG, PANEL PCB MOUNT, GOLD PLATED CONTACTS, NYLON (POLYAMIDE) BODY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IO-XLR5-M-BH

Active

IO Audio Technologies

XLR CONNECTOR, R/A, 5 CONTACTS, PLUG, PANEL PCB MOUNT, GOLD PLATED CONTACTS, NYLON (POLYAMIDE) BODY

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	IO-XLR5-M-BH	IO-XLR5 Series

Applications	Audio, Lighting Control	Audio, Video, Lighting Control, Medical, Audio, Lighting Control
Backshell Material, Plating	-	Zinc Die Cast
Color	Black, Silver	Silver, Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins, Receptacle, Female Sockets, Female Sockets, Plug
Contact Finish - Mating	Gold	Silver, Gold
Contact Finish Thickness - Mating	1.97 Áin	1.97 Áin
Contact Finish Thickness - Mating	0.05 Ám	0.05 Ám
Contact Material	Brass	Phosphor Bronze, Brass
Current Rating (Amps)	3 A	3 - 7.5 A
Fastening Type	Latch Lock	Latch Lock
Features	Board Lock, Ground, Board Guide	Ground, Board Lock, Board Guide, Strain Relief, Backshell
Insert Material	Nylon, Polyamide (PA)	Nylon, Polyamide (PA), Plastic
Material Flammability Rating	UL94 HB	UL94 HB
Mounting Feature	Flange	Flange
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Right Angle, Panel Mount, Free Hanging (In-Line)
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Metal, Plastic
Shell Finish	-	Nickel, Black
Shell Material	-	Zinc Die Cast
Shell Size - Insert	XLR	XLR
Shielding	Unshielded	Shielded, Unshielded
Termination	Solder	Solder
Voltage Rating	50 VAC	50 - 1500 VAC

IO-XLR5 Series

CONN RCPT MALE XLR 5P SOLDER CUP

Part	Current Rating (Amps)	Shielding	Mounting Feature	Features	Voltage Rating	Shell Material	Orientation	Contact Finish - Mating	Applications	Connector Type	Primary Material	Color	Fastening Type	Insert Material	Shell Finish	Contact Material	Shell Size - Insert	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Backshell Material, Plating
IO Audio Technologies IO-XLR5-M-JLX	7.5 A	Shielded	Flange	Ground	125 VAC	Zinc Die Cast	Keyed	Silver	Audio, Lighting Control, Medical, Video	Male Pins, Receptacle	Metal	Silver	Latch Lock	Nylon, Polyamide (PA)	Nickel	Phosphor Bronze	XLR
IO Audio Technologies IO-XLR5-F-JLX	7.5 A	Shielded	Flange	Ground	125 VAC	Zinc Die Cast	Keyed	Silver	Audio, Lighting Control, Medical, Video	Receptacle, Female Sockets	Metal	Silver	Latch Lock	Nylon, Polyamide (PA)	Nickel	Phosphor Bronze	XLR
IO Audio Technologies IO-XLR5-M-BH	3 A	Unshielded	Flange	Board Guide, Board Lock, Ground	50 VAC		Keyed	Gold	Audio, Lighting Control	Male Pins, Receptacle	Plastic	Black, Silver	Latch Lock	Nylon, Polyamide (PA)		Brass	XLR	Panel Mount, Right Angle, Through Hole	-40 °C	70 °C	Solder	1.97 Áin	0.05 Ám	UL94 HB
IO Audio Technologies IO-XLR5-M-EV		Unshielded	Flange	Board Guide, Ground			Keyed	Gold	Audio, Lighting Control, Medical, Video	Male Pins, Receptacle	Plastic	Black	Latch Lock	Nylon, Polyamide (PA)		Brass	XLR	Panel Mount, Through Hole			Solder
IO Audio Technologies IO-XLR5-F-BKAU	7.5 A	Unshielded		Backshell, Strain Relief	125 VAC	Zinc Die Cast		Gold	Audio, Lighting Control	Female Sockets, Plug	Metal	Black	Latch Lock	Plastic		Phosphor Bronze	XLR	Free Hanging (In-Line)				1.97 Áin	0.05 Ám		Zinc Die Cast
IO Audio Technologies IO-XLR5-M-BK	7.5 A	Unshielded		Backshell, Strain Relief	1500 VAC	Zinc Die Cast		Silver	Audio	Male Pins, Receptacle	Metal	Black	Latch Lock			Phosphor Bronze	XLR	Free Hanging (In-Line)							Zinc Die Cast
IO Audio Technologies IO-XLR5-F-BH	3 A	Unshielded	Flange	Board Guide, Board Lock, Ground	50 VAC		Keyed	Gold	Audio, Lighting Control	Receptacle, Female Sockets	Plastic	Black, Silver	Latch Lock	Nylon, Polyamide (PA)		Brass	XLR	Panel Mount, Right Angle, Through Hole	-40 °C	70 °C	Solder	1.97 Áin	0.05 Ám	UL94 HB
IO Audio Technologies IO-XLR5-M-JL	7.5 A	Shielded	Flange	Ground	125 VAC	Zinc Die Cast	Keyed	Silver	Audio, Lighting Control, Medical, Video	Male Pins, Receptacle	Metal	Silver	Latch Lock	Nylon, Polyamide (PA)	Nickel	Phosphor Bronze	XLR
IO Audio Technologies IO-XLR5-F-EV		Unshielded	Flange	Board Guide, Ground			Keyed	Gold	Audio, Lighting Control, Medical, Video	Receptacle, Female Sockets	Plastic	Black	Latch Lock	Nylon, Polyamide (PA)		Brass	XLR	Panel Mount, Through Hole			Solder
IO Audio Technologies IO-XLR5-M-EH		Unshielded	Flange	Board Guide, Ground			Keyed	Gold	Audio, Lighting Control, Medical, Video	Male Pins, Receptacle	Plastic	Black	Latch Lock	Nylon, Polyamide (PA)		Brass	XLR	Panel Mount, Right Angle, Through Hole			Solder
