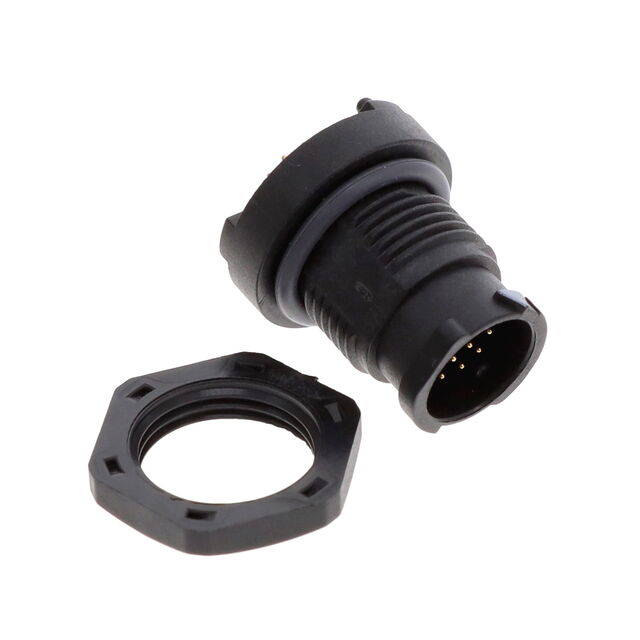

AZ-17PMMP-QC8001
ActiveAmphenol LTW
X-LOK MINI SIZE PANEL CONN 1.5A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AZ-17PMMP-QC8001 |
|---|---|
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 1.5 A |
| Fastening Type | Push-Twist |
| Features | Board Guide |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 17 |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Size - Insert | A |
| Shielding | Unshielded |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 11.13 | |
| 10 | $ 10.01 | |||
| 25 | $ 9.43 | |||
| 40 | $ 9.19 | |||
| 180 | $ 8.95 | |||
| 360 | $ 7.98 | |||
| 540 | $ 7.50 | |||
| 1080 | $ 6.63 | |||
Description
General part information
AZ-17PMMP Series
17 (Data) Position Circular Connector Receptacle, Male Pins Solder
