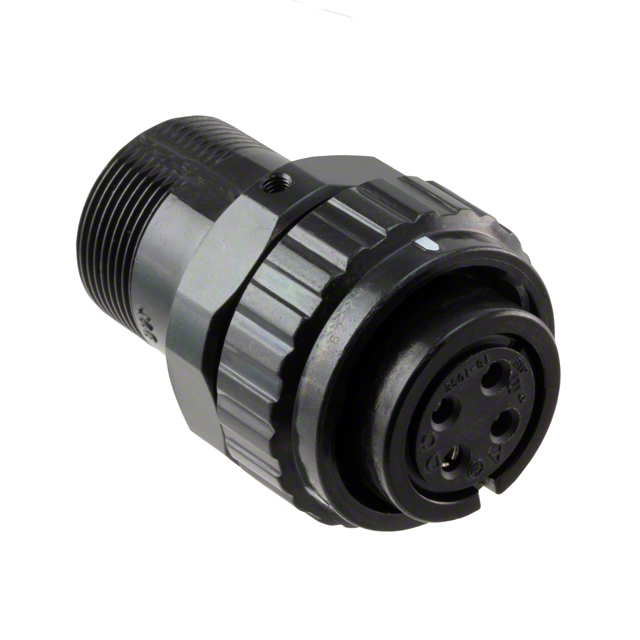

JL10-6A18-10SE-EB

Active

JAE Electronics

CONN PLUG FMALE 4P SOLDER CUP

Search across all available documentation for this part.

Active

JAE Electronics

CONN PLUG FMALE 4P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	JL10-6A18-10SE-EB

Applications	Industrial, Test Equipment & Measurement, Communication Systems
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	23 A
Fastening Type	Bayonet Lock
Features	Backshell, Ground, Coupling Nut
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Synthetic Resin
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Orientation	N
Primary Material	Metal
Shell Finish	Zinc
Shell Material	Aluminum Alloy
Shell Size - Insert	18-10

Part	Shell Size - Insert	Contact Finish - Mating	Shell Material	Fastening Type	Current Rating (Amps)	Orientation	Features	Connector Type	Color	Mounting Type	Applications	Primary Material	Insert Material	Shell Finish	Ingress Protection	Number of Positions	Contact Material
JAE Electronics JL10-6A18-10SE-EB	18-10	Silver	Aluminum Alloy	Bayonet Lock	23 A	N	Backshell Coupling Nut Ground	Female Sockets Plug	Black	Free Hanging (In-Line)	Communication Systems Industrial Test Equipment & Measurement	Metal	Synthetic Resin	Zinc	IP67 - Dust Tight Waterproof	4	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 47.20

General part information

4 (3 + PE) Position Circular Connector Plug, Female Sockets Solder Cup
