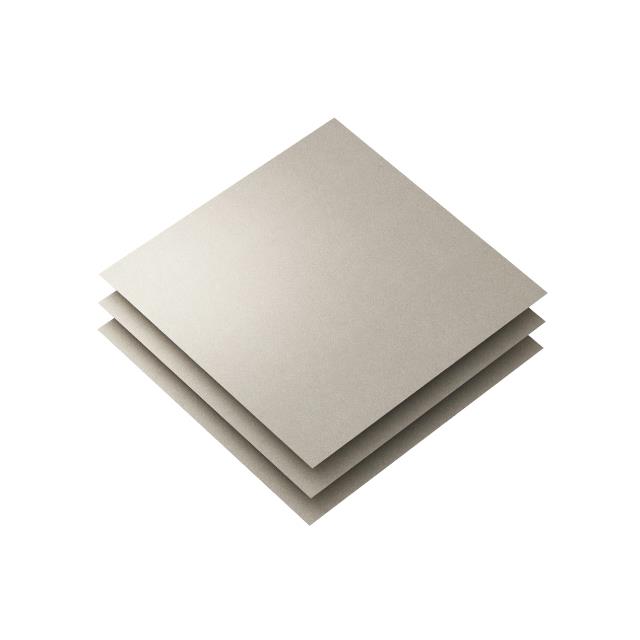

FW5(75)-80X80T2900

Active

KEMET

RF EMI ABSORB SHEET 3.15"X3.15"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet FW5(75)-80X80T2900 Spec

FW5(75)-80X80T2900

Active

KEMET

RF EMI ABSORB SHEET 3.15"X3.15"

Deep-Dive with AI

DocumentsDatasheet FW5(75)-80X80T2900 Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FW5(75)-80X80T2900

Adhesive	Single Sided, Non-Conductive
Length	0.08 m
Length	3.15 "
Material	Magnetic Powder, Polymer
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shape	Square
Shelf Life	36 Months
Thickness - Overall	0.003 "
Thickness - Overall	0.08 mm
Type	Absorbing Sheet
Width	80 mm
Width [x]	3.15 in

FW5 Series

Part	Type	Length [x]	Length [x]	Width	Width	Adhesive	Operating Temperature [Min]	Operating Temperature [Max]	Shape	Material	Shelf Life	Thickness - Overall [custom]	Thickness - Overall	Thickness - Overall	Length	Length	Width [x]	Thickness - Overall [custom]	Thickness - Overall [custom]
KEMET FW5(50)-240X10MT2900	Absorbing Sheet	32.808 '	10 m	240 mm	9.449 in	Non-Conductive Single Sided	-40 °C	105 ░C	Roll	Magnetic Powder Polymer	36 Months	0.002 in	0.05 mm
KEMET FW5(75)-240X50M	Absorbing Sheet			240 mm	9.449 in		-40 °C	105 ░C	Roll	Magnetic Powder Polymer			0.08 mm	0.003 "
KEMET FW5(75)-80X80T2900	Absorbing Sheet			80 mm		Non-Conductive Single Sided	-40 °C	105 ░C	Square	Magnetic Powder Polymer	36 Months		0.08 mm	0.003 "	0.08 m	3.15 "	3.15 in
KEMET FW5(75)-240X240T2900	Absorbing Sheet	9.449 in	240 mm	240 mm	9.449 in	Non-Conductive Single Sided	-40 °C	105 ░C	Square	Magnetic Powder Polymer	36 Months		0.08 mm	0.003 "
KEMET FW5(50)-240X10M	Absorbing Sheet	32.808 '	10 m	240 mm	9.449 in		-40 °C	105 ░C	Roll	Magnetic Powder Polymer		0.002 in	0.05 mm
KEMET FW5(100)-240X80T2900	Absorbing Sheet	9.449 in	240 mm	80 mm		Non-Conductive Single Sided	-40 °C	105 ░C	Rectangular	Magnetic Powder Polymer	36 Months						3.15 in	0.004 "	0.1 mm
KEMET FW5(50)-240X80T2900	Absorbing Sheet	9.449 in	240 mm	80 mm		Non-Conductive Single Sided	-40 °C	105 ░C	Rectangular	Magnetic Powder Polymer	36 Months	0.002 in	0.05 mm				3.15 in
KEMET FW5(50)-240X240T2900	Absorbing Sheet	9.449 in	240 mm	240 mm	9.449 in	Non-Conductive Single Sided	-40 °C	105 ░C	Square	Magnetic Powder Polymer	36 Months	0.002 in	0.05 mm
KEMET FW5(75)-240X50MT2900	Absorbing Sheet			240 mm	9.449 in	Non-Conductive Single Sided	-40 °C	105 ░C	Roll	Magnetic Powder Polymer	36 Months		0.08 mm	0.003 "
KEMET FW5(100)-240X10M	Absorbing Sheet	32.808 '	10 m	240 mm	9.449 in		-40 °C	105 ░C	Roll	Magnetic Powder Polymer								0.004 "	0.1 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Sheet	1	$ 3.07
		10	$ 2.75
		25	$ 2.60
		100	$ 2.26
		250	$ 2.14
		500	$ 2.04
LCSC	Piece	1	$ 2.37
		200	$ 0.95
		500	$ 0.92
		1000	$ 0.90

Description

General part information

FW5 Series

RF EMI Absorbing Sheet FW5 - FLEX SUPPRESSOR® Polymer, Magnetic Powder Non-Conductive, Single Sided 3.150" (80.00mm) X 3.150" (80.00mm) X 0.003" (0.08mm)
