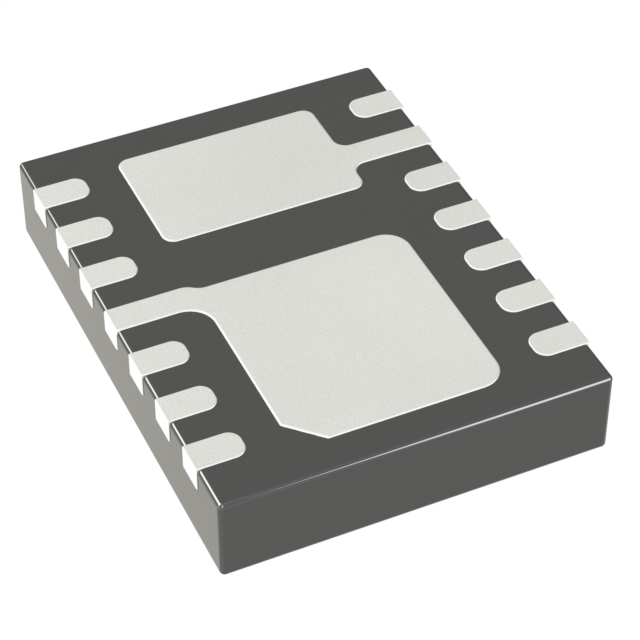

LT3032EDE-5#TRPBF
ActiveDUAL 150MA POSITIVE/NEGATIVE LOW NOISE LOW DROPOUT LINEAR REGULATOR
Deep-Dive with AI
Search across all available documentation for this part.
LT3032EDE-5#TRPBF
ActiveDUAL 150MA POSITIVE/NEGATIVE LOW NOISE LOW DROPOUT LINEAR REGULATOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LT3032EDE-5#TRPBF |
|---|---|
| Control Features | Enable |
| Current - Output | 150 mA |
| Mounting Type | Surface Mount |
| Number of Regulators | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive and Negative |
| Output Type | 1.81 mOhm |
| Package / Case | 14-PowerWFDFN |
| Protection Features | Over Temperature, Reverse Polarity, Over Current |
| PSRR | 54 dB, 68 dB |
| Supplier Device Package | 14-DFN (4x3) |
| Voltage - Input (Max) | 20 V |
| Voltage - Output (Min/Fixed) | 5 V |
| Voltage Dropout (Max) | 0.27 V, 0.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 8.21 | |
| 10 | $ 5.64 | |||
| 25 | $ 4.97 | |||
| 100 | $ 4.23 | |||
| 250 | $ 3.87 | |||
| 500 | $ 3.65 | |||
| 1000 | $ 3.46 | |||
| Digi-Reel® | 1 | $ 8.21 | ||
| 10 | $ 5.64 | |||
| 25 | $ 4.97 | |||
| 100 | $ 4.23 | |||
| 250 | $ 3.87 | |||
| 500 | $ 3.65 | |||
| 1000 | $ 3.46 | |||
| Tape & Reel (TR) | 2500 | $ 3.33 | ||
Description
General part information
LT3032 Series Series
The LT3032 is a dual, low noise, positive and negative low dropout voltage linear regulator. Each regulator delivers up to 150mA with a typical 300mV dropout voltage. Each regulator’s quiescent current is low (30μA operating and <3μA in shutdown) and well-controlled in dropout, making it an excellent choice for battery-powered circuits.Another key feature of the LT3032 is low output noise. Adding an external 10nF bypass capacitor to each regulator reduces output noise to 20μVRMS/30μVRMSover a 10Hz to 100kHz bandwidth. The LT3032 is stable with minimum output capacitors of 2.2μF. The regulators do not require the addition of ESR as is common with other regulators.The regulators are offered as adjustable output devices with an output voltage down to the ±1.22V reference voltage or in fixed voltages of ±3.3V, ±5V, ±12V and ±15V. Internal protection circuitry includes reverse-output protection, current limiting and thermal limiting.The LT3032 is available in a unique low profile 14-lead 4mm × 3mm × 0.75mm DFN package with exposed backside pads for each regulator, allowing optimum thermal performance.ApplicationsBattery-Powered InstrumentsBipolar Power SuppliesLow Noise Power Supplies
