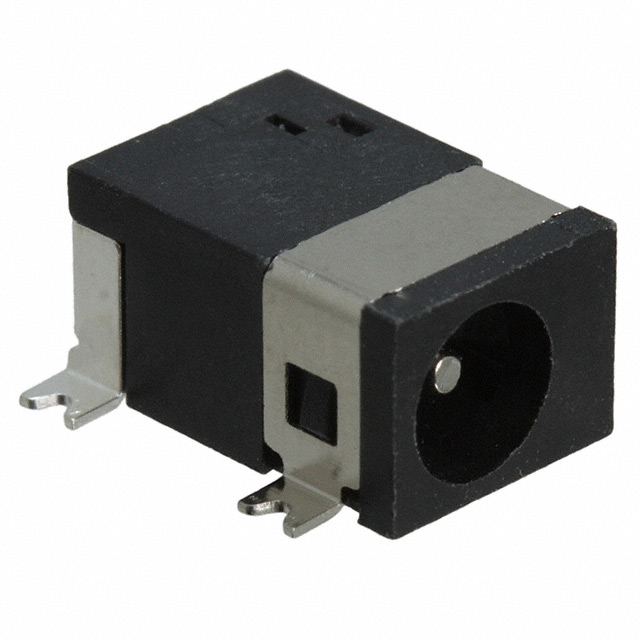

PJ-075CH-SMT-TR
ObsoleteCUI Devices
CONN PWR JACK 1X3.4MM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PJ-075CH-SMT-TR
ObsoleteCUI Devices
CONN PWR JACK 1X3.4MM SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PJ-075CH-SMT-TR |
|---|---|
| Actual Diameter [diameter] | 0.146 ", 0.039 in |
| Actual Diameter [diameter] | 1 mm, 3.7 mm |
| Body Color | Black |
| Connector Type | Jack |
| Contact Material | Copper Alloy, Brass |
| Contact Material - Plating [custom] | Silver |
| Current Rating (Amps) | 3.5 A |
| Features | Board Guide |
| Gender | Male |
| Housing Material | Polyamide (PA6T), Nylon 6T |
| Industry Recognized Mating Diameter [diameter] | 0.134 ", 0.039 " |
| Industry Recognized Mating Diameter [diameter] | 1 mm, 3.4 mm |
| Internal Switch(s) | Single Switch, Normally Closed |
| Material Flammability Rating | UL94 V-0 |
| Mating Length/Depth | 6.4 mm |
| Mating Length/Depth | 0.252 in |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions/Contacts | 3 Conductors, 2 Conductors |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.16 | |
| 10 | $ 0.89 | |||
| 25 | $ 0.80 | |||
| 50 | $ 0.74 | |||
| 100 | $ 0.68 | |||
| 250 | $ 0.61 | |||
| Tape & Reel (TR) | 950 | $ 0.52 | ||
Description
General part information
PJ-075 Series
Power Barrel Connector Jack 1.00mm ID (0.039"), 3.40mm OD (0.134") Surface Mount, Right Angle
