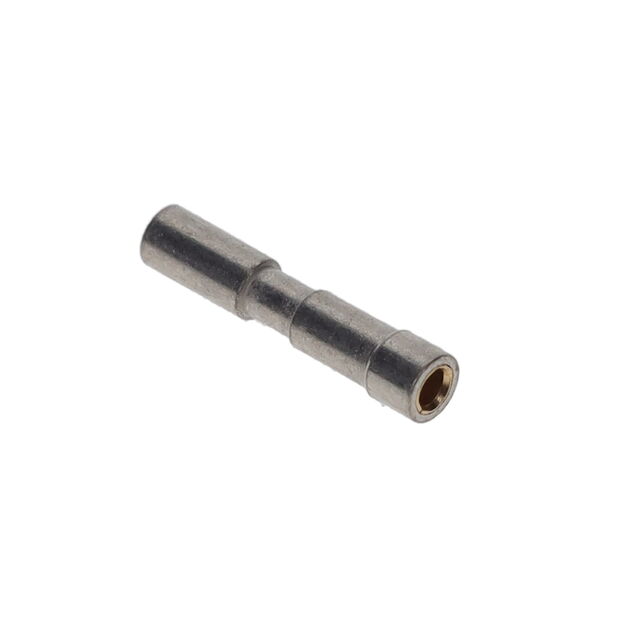

6002-0-19-80-15-27-10-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT
Deep-Dive with AI
Search across all available documentation for this part.
6002-0-19-80-15-27-10-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 6002-0-19-80-15-27-10-0 |
|---|---|
| Accepts Pin Diameter [Max] [diameter] | 0.81 mm |
| Accepts Pin Diameter [Max] [diameter] | 0.032 in |
| Accepts Pin Diameter [Min] [diameter] | 0.02 " |
| Accepts Pin Diameter [Min] [diameter] | 0.51 mm |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Beryllium Copper |
| Flange Diameter [diameter] | 0.064 in |
| Flange Diameter [diameter] | 1.63 mm |
| Length - Overall | 0.31 in |
| Length - Overall | 7.87 mm |
| Mounting Hole Diameter [diameter] | 1.5 mm |
| Mounting Hole Diameter [diameter] | 0.059 in |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pin Hole Diameter [diameter] | 1.19 mm |
| Pin Hole Diameter [diameter] | 0.047 " |
| Socket Depth | 0.125 in |
| Socket Depth | 3.18 mm |
| Tail Type | No Tail |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.40 | |
| 10 | $ 1.22 | |||
| 25 | $ 1.16 | |||
| 50 | $ 1.14 | |||
| 100 | $ 1.09 | |||
| 250 | $ 0.98 | |||
| 500 | $ 0.90 | |||
| 1000 | $ 0.78 | |||
| 3000 | $ 0.72 | |||
Description
General part information
6002-0 Series
Pin Receptacle Connector 0.020" ~ 0.032" (0.51mm ~ 0.81mm) No Tail Solder
Documents
Technical documentation and resources
No documents available
