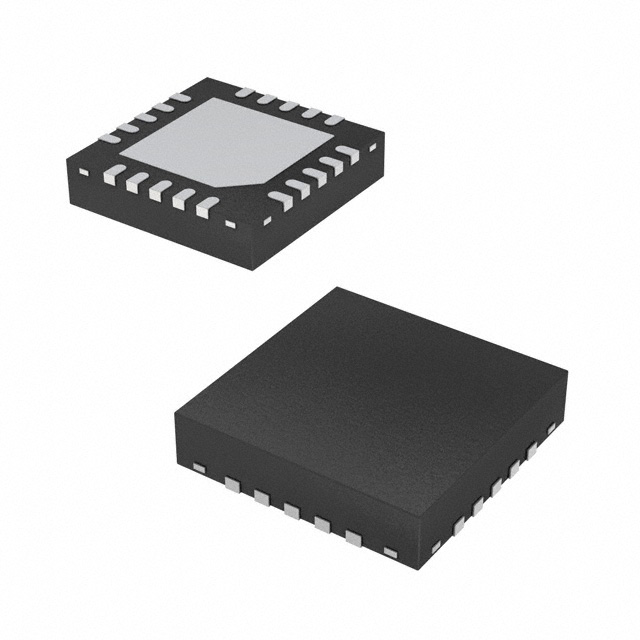

ZL40262LDG1
Active2-OUTPUT PCIE HCSL FANOUT BUFFERS WITH INDIVIDUAL OUTPUT ENABLE 20 VQFN 4X4X1MM TRAY ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
ZL40262LDG1
Active2-OUTPUT PCIE HCSL FANOUT BUFFERS WITH INDIVIDUAL OUTPUT ENABLE 20 VQFN 4X4X1MM TRAY ROHS COMPLIANT: YES
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ZL40262LDG1 | ZL40262 Series |
|---|---|---|
| - | - | |
| Differential - Input:Output [custom] | True | True |
| Differential - Input:Output [custom] | True | True |
| Frequency - Max [Max] | 400 MHz | 400 MHz |
| Input | Differential or Single-Ended | Differential or Single-Ended |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Circuits | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output | HCSL | HCSL |
| Package / Case | 20-VFQFN Exposed Pad | 20-VFQFN Exposed Pad |
| Ratio - Input:Output [custom] | 1:2 | 1:2 |
| Supplier Device Package | 20-QFN (4x4) | 20-QFN (4x4) |
| Type | Fanout Buffer (Distribution) | Fanout Buffer (Distribution) |
| Voltage - Supply [Max] | 2.625 V, 3.465 V | 2.625 - 3.465 V |
| Voltage - Supply [Min] | 2.375 V, 3.135 V | 2.375 - 3.135 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Arrow | N/A | 1 | $ 1.56 | |
| Digikey | Tray | 1 | $ 4.17 | |
| 25 | $ 3.47 | |||
| 100 | $ 3.35 | |||
| Microchip Direct | TRAY | 1 | $ 4.16 | |
| 25 | $ 3.47 | |||
| 100 | $ 3.15 | |||
| 1000 | $ 3.05 | |||
| 5000 | $ 3.01 | |||
| Newark | Each | 100 | $ 1.58 | |
ZL40262 Series
1:2 Individual Output Enable Buffer
| Part | Input | Output | Voltage - Supply [Max] | Voltage - Supply [Min] | Frequency - Max [Max] | Differential - Input:Output [custom] | Differential - Input:Output [custom] | Package / Case | Mounting Type | Type | Ratio - Input:Output [custom] | Number of Circuits | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology ZL40262LDG1 | |||||||||||||||
Microchip Technology ZL40262LDG1 | Differential or Single-Ended | HCSL | 2.625 V, 3.465 V | 2.375 V, 3.135 V | 400 MHz | 20-VFQFN Exposed Pad | Surface Mount | Fanout Buffer (Distribution) | 1:2 | 1 | 85 °C | -40 °C | 20-QFN (4x4) | ||
Microchip Technology ZL40262LDG1 |
Description
General part information
ZL40262 Series
