PR36MF21NSZ

Obsolete

Sharp Microelectronics

SSR RELAY SPST-NO 600MA 0-240V

Search across all available documentation for this part.

Obsolete

Sharp Microelectronics

SSR RELAY SPST-NO 600MA 0-240V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

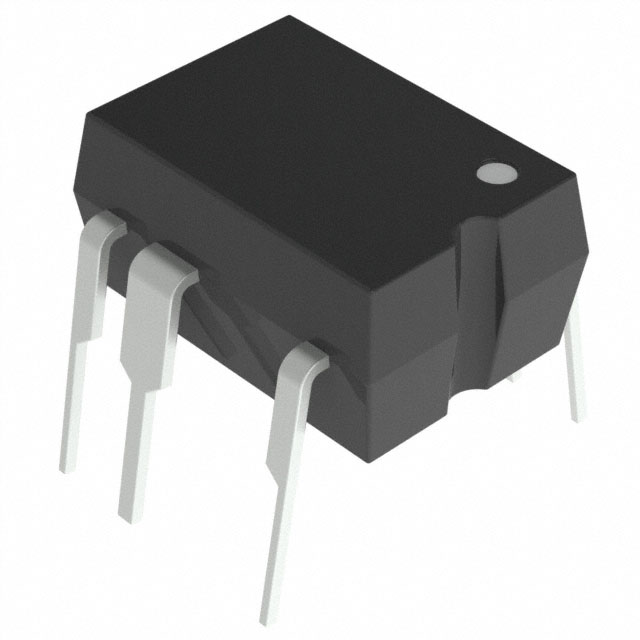

Solid State SPST-NO (1 Form A) 8-DIP (0.300", 7.62mm), 7 Leads

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

SSR RELAY SPST-NO 600MA 0-240V

Part	Output Type	Supplier Device Package	Termination Style	Load Current	Voltage - Load [Min]	Voltage - Load [Max]	Approval Agency	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Package / Case	Package / Case	Voltage - Input	Turn On Time	Static dV/dt (Min) [Min]	Current - Hold (Ih)	Number of Channels	Current - LED Trigger (Ift) (Max) [Max]	Voltage - Off State	Voltage - Isolation	Current - On State (It (RMS)) (Max)	Zero Crossing Circuit	Current - DC Forward (If) (Max)
Sharp Microelectronics PR36MF21NSZ	AC, Zero Cross	8-DIP	PC Pin	600 mA	0 V	240 V	CSA, UL, VDE	Through Hole	-30 ░C	85 °C	7.62 mm	0.3 in, 7 Leads	8-DIP	1.2 VDC
Sharp Microelectronics PR36MF21YSZF		6-DIP					CSA, UR, VDE	Through Hole	-30 ░C	85 °C	7.62 mm	0.3 in	6-DIP		50 µs	100 V/µs	25 mA	1	10 mA	600 V	4000 Vrms	600 mA		50 mA
