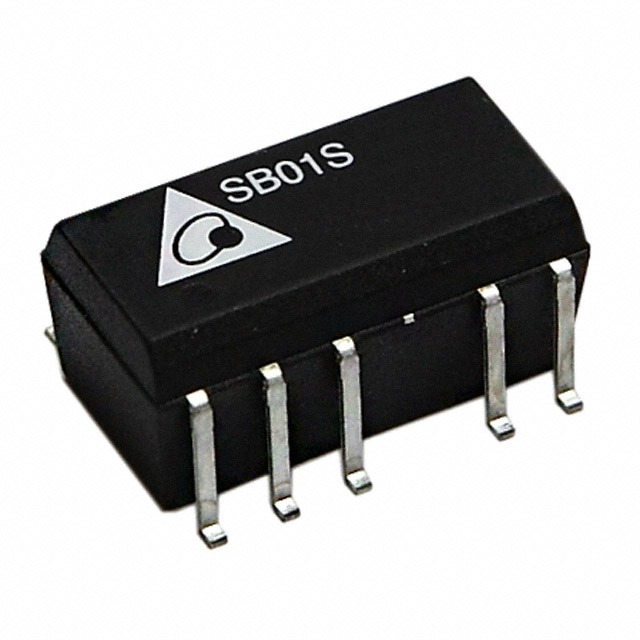

SB01S1212A

Active

Delta Electronics

DC DC CONVERTER 12V 1W

Search across all available documentation for this part.

Active

Delta Electronics

DC DC CONVERTER 12V 1W

Technical Specifications

Parameters and characteristics commom to parts in this series

DC DC CONVERTER 5V 1W

Part	Voltage - Input (Max) [Max]	Mounting Type	Applications	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Output 1	Current - Output (Max) [Max]	Features	Number of Outputs	Type	Efficiency	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Package / Case	Package / Case
Delta Electronics SB01S0505A	5.5 V	Surface Mount	Medical	10.7 mm	0.28 "	15.2 mm	7 mm	0.6 in	0.42 "	5 V	200 mA	SCP	1	Isolated Module	71 %	4.5 V	85 °C	-40 °C	3000 V	10 Leads	12-SMD Module
Delta Electronics SB01S1212A	13.2 V	Surface Mount	Medical	10.7 mm	0.28 "	15.2 mm	7 mm	0.6 in	0.42 "	12 V	84 mA	SCP	1	Isolated Module	79 %	10.8 V	85 °C	-40 °C	3000 V	10 Leads	12-SMD Module
Delta Electronics SB01S2415A	26.4 V	Surface Mount	Medical	10.7 mm	0.28 "	15.2 mm	7 mm	0.6 in	0.42 "	15 V	67 mA	SCP	1	Isolated Module	79 %	21.6 V	85 °C	-40 °C	3000 V	10 Leads	12-SMD Module
Delta Electronics SB01S2412A	26.4 V	Surface Mount	Medical	10.7 mm	0.28 "	15.2 mm	7 mm	0.6 in	0.42 "	12 V	84 mA	SCP	1	Isolated Module	78 %	21.6 V	85 °C	-40 °C	3000 V	10 Leads	12-SMD Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	100	$ 8.02

General part information

Isolated Module DC DC Converter 1 Output 12V 84mA 10.8V - 13.2V Input
