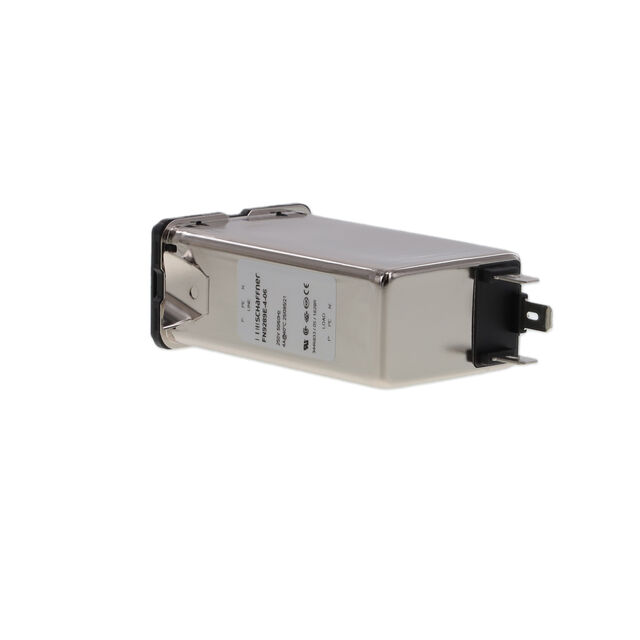

Technical Specifications
Parameters and characteristics for this part
| Specification | FN9289E-4-06 |
|---|---|
| Accomodates a Fuse | True |
| Approval Agency | ENEC, UR, CQC, CSA |
| Connector Style | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module |
| Current Rating - Filter | 4 A |
| Filter Type | Filtered (EMI, RFI) - Commercial, Medical |
| Fuse Holder, Drawer | Fuse Holder, Twin Fused |
| Ingress Protection | IP40 |
| Material Flammability Rating | UL94 V-2 |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 28.8 mm |
| Panel Cutout Dimensions [y] | 47.8 mm |
| Panel Thickness [Max] | 2.5 mm |
| Panel Thickness [Max] | 0.098 in |
| Panel Thickness [Min] | 1 mm |
| Panel Thickness [Min] | 0.039 in |
| Switch Features | Switch On-Off |
| Termination | 0.25 in |
| Termination | 6.3 mm |
| Termination | Quick Connect |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 30.69 | |
| 10 | $ 23.74 | |||
| 25 | $ 23.16 | |||
Description
General part information
Schaffner FN9280 Series
4 A, Unfiltered, 310 µA Leakage Current @ 250VAC, 50Hz, FASTON, Ground Choke, 180 µA Leakage Current @ 120VAC, 60Hz, Schaffner FN9280, Inlet Filters
