PBPC804

Obsolete

Diodes Inc

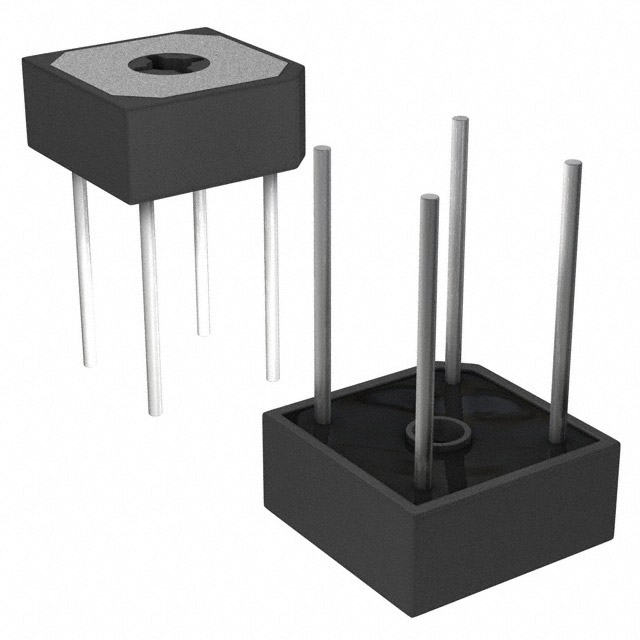

BRIDGE RECT 1P 400V 6A PBPC-8

Search across all available documentation for this part.

Obsolete

Diodes Inc

BRIDGE RECT 1P 400V 6A PBPC-8

Technical Specifications

Parameters and characteristics for this part

Specification	PBPC804

Current - Average Rectified (Io)	6 A
Current - Reverse Leakage @ Vr	10 µA
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 °C
Package / Case	4-Square, PBPC-8
Supplier Device Package	PBPC-8
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.1 V
Voltage - Peak Reverse (Max) [Max]	400 V

Part	Supplier Device Package	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Diode Type	Technology	Voltage - Peak Reverse (Max) [Max]	Package / Case
Diodes Inc PBPC803	PBPC-8	10 µA	6 A	1.1 V	125 °C	-65 °C	Through Hole	Single Phase	Standard	200 V	4-Square PBPC-8
Diodes Inc PBPC804	PBPC-8	10 µA	6 A	1.1 V	125 °C	-65 °C	Through Hole	Single Phase	Standard	400 V	4-Square PBPC-8
Diodes Inc PBPC802	PBPC-8	10 µA	6 A	1.1 V	125 °C	-65 °C	Through Hole	Single Phase	Standard	100 V	4-Square PBPC-8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bridge Rectifier Single Phase Standard 400 V Through Hole PBPC-8
