SMCJ7V5A
ActiveTaiwan Semiconductor Corporation
1500W, 8.8V, 5%, UNIDIRECTIONAL, TVS
Deep-Dive with AI
Search across all available documentation for this part.
SMCJ7V5A
ActiveTaiwan Semiconductor Corporation
1500W, 8.8V, 5%, UNIDIRECTIONAL, TVS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SMCJ7V5A |
|---|---|
| Applications | General Purpose |
| Current - Peak Pulse (10/1000µs) | 116.3 A |
| Mounting Type | Surface Mount |

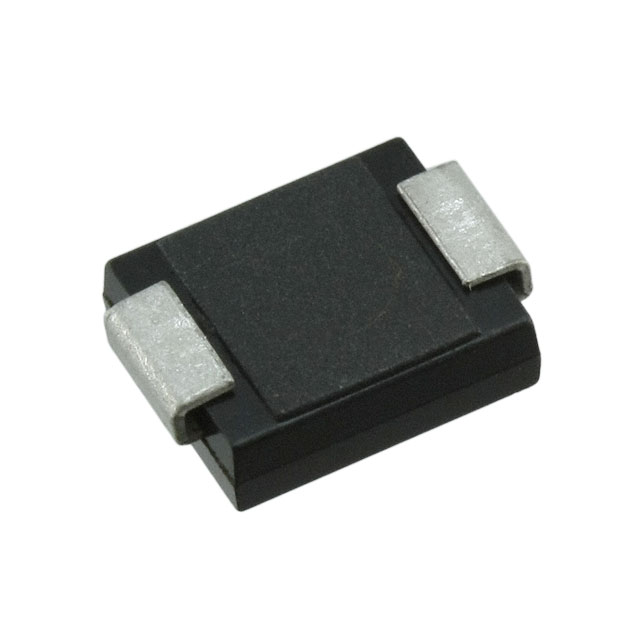

| Package / Case | SMC, DO-214AB |
| Power - Peak Pulse | 1.5 kW |
| Power - Peak Pulse | 1500 W |
| Power Line Protection | False |
| Supplier Device Package | DO-214AB (SMC) |
| Type | Zener |
| Unidirectional Channels [custom] | 1 |
| Voltage - Breakdown (Min) [Min] | 8.33 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 12.9 V |
| Voltage - Reverse Standoff (Typ) | 7.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.62 | |
| Digi-Reel® | 1 | $ 0.62 | ||
| Tape & Reel (TR) | 3000 | $ 0.21 | ||
| 6000 | $ 0.20 | |||
| 9000 | $ 0.19 | |||
| 30000 | $ 0.18 | |||
Description
General part information
SMCJ7V5 Series
12.9V Clamp 116.3A Ipp Tvs Diode Surface Mount DO-214AB (SMC)
