SI-LS31HGLE

Obsolete

BANNER ENGINEERING

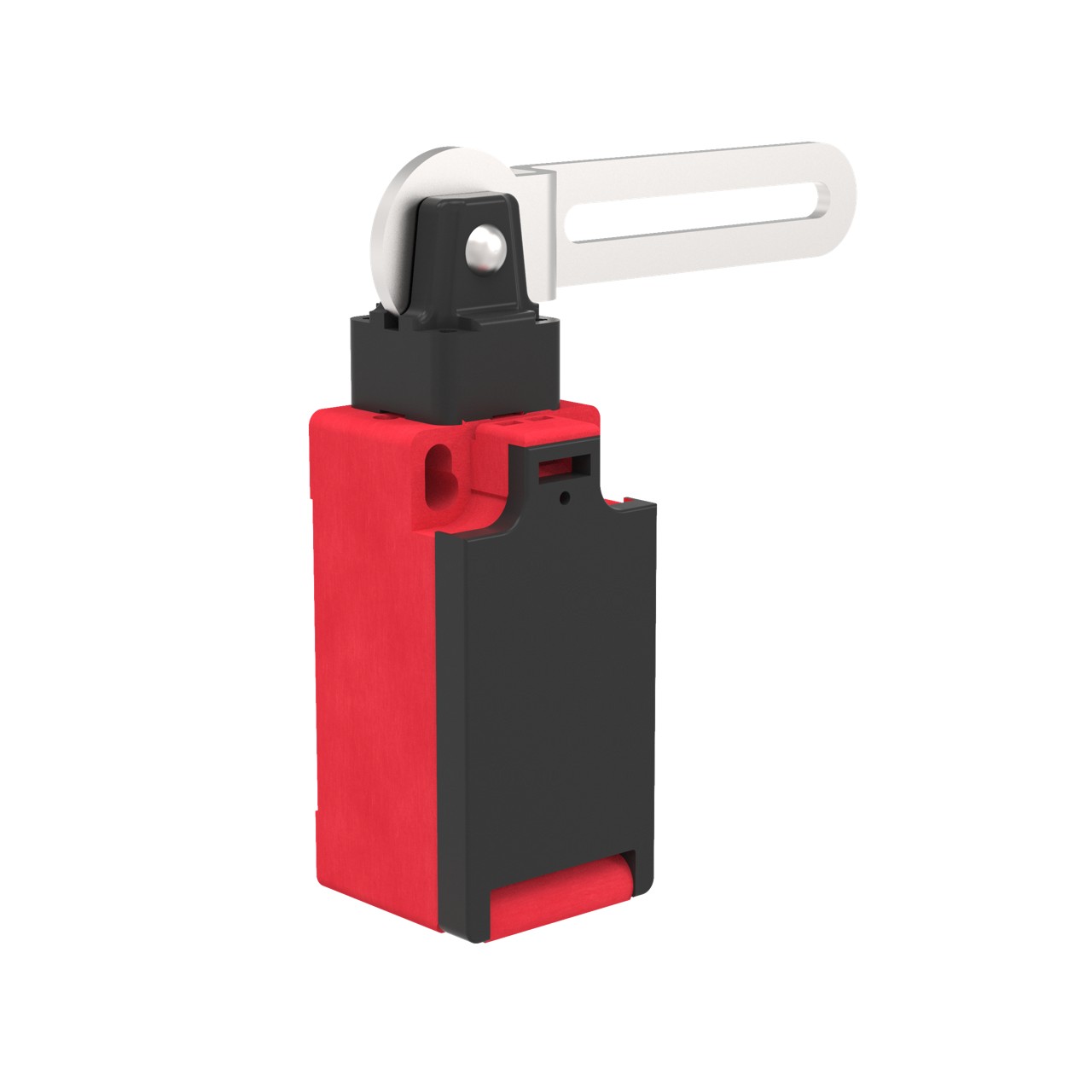

LIMIT SWITCH: LEFT-HAND HINGED LEVER 180 DEGREES

Search across all available documentation for this part.

Obsolete

BANNER ENGINEERING

LIMIT SWITCH: LEFT-HAND HINGED LEVER 180 DEGREES

Technical Specifications

Parameters and characteristics for this part

Specification	SI-LS31HGLE

Actuator Type	Arm Lever
Approval Agency	UL, CSA, CE
Circuit	DPST-NC
Ingress Protection	IP65 - Dust Tight, Water Resistant
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Termination Style	Screw Terminal
Type	Hinge
Voltage Rating	24 VDC, 110 VAC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Ingress Protection	Circuit	Type	Approval Agency	Actuator Type	Termination Style	Mounting Type	Current Rating (Amps)	Mechanical Life	Voltage Rating - AC	Switch Function	Voltage Rating - DC
BANNER ENGINEERING SI-LS31HGRE	-30 ░C	80 C	24 VDC 110 VAC	IP65 - Dust Tight Water Resistant	DPST-NC	Hinge	CE CSA UL	Arm Lever	Screw Terminal
BANNER ENGINEERING SI-LS31HGLE	-30 ░C	80 C	24 VDC 110 VAC	IP65 - Dust Tight Water Resistant	DPST-NC	Hinge	CE CSA UL	Arm Lever	Screw Terminal
BANNER ENGINEERING SI-LS31RTD	-30 ░C	80 C	24 VDC 110 VAC	IP65 - Dust Tight Water Resistant	DPST-NO/NC	Hinge	CE CSA UL	Shaft	Screw Terminal
BANNER ENGINEERING SI-LS31PBF	-30 ░C	80 C		IP65 - Dust Tight Water Resistant	3PST-2NC/1NO			Round (Pin Plunger)	Screw Terminal	Chassis Mount	3 A	1000000 Cycles	120 V	Off-Mom On-Mom
BANNER ENGINEERING SI-LS31L22E
BANNER ENGINEERING SI-LS31PBE
BANNER ENGINEERING SI-LS31LA18E	-30 ░C	80 C		IP65 - Dust Tight Water Resistant	DPST-NC			Roller Side Rotary	Screw Terminal	Chassis Mount	3 A 550 mA	1000000 Cycles	120 V	On-Mom	120 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Newark	Each	1	$ 69.00

General part information

LIMIT SWITCH: LEFT-HAND HINGED LEVER 180 DEGREES

Technical documentation and resources

No documents available
