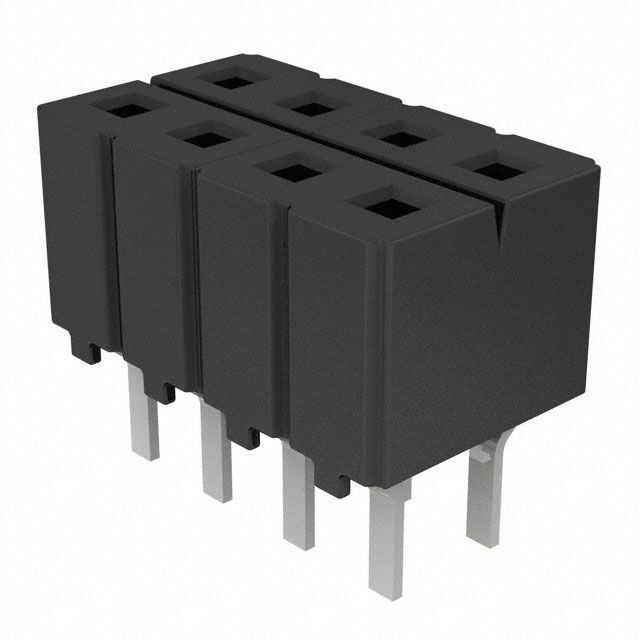

CES-104-01-L-D

Active

Samtec Inc.

CONN RCPT 8POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet CES Series Other Related Documents 01 +1

CES-104-01-L-D

Active

Samtec Inc.

CONN RCPT 8POS 0.1 GOLD PCB

Deep-Dive with AI

DocumentsDatasheet CES Series Other Related Documents 01 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CES-104-01-L-D

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Post	0.128 "
Contact Length - Post	3.25 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder

CES-104 Series

Part	Material Flammability Rating	Number of Rows	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Contact Material	Number of Positions	Fastening Type	Contact Shape	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Contact Type	Insulation Material	Termination	Connector Type	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. CES-104-01-F-D	UL94 V-0	2	Tin	-55 °C	125 °C	Through Hole	0.1 in	2.54 mm	0.128 "	3.25 mm	Phosphor Bronze	8	Push-Pull	Square	Gold	3 µin	0.076 µm	All	2.54 mm	0.1 in	Black	Female Socket	Polybutylene Terephthalate (PBT)	Solder	Receptacle
Samtec Inc. CES-104-02-T-S-RA	UL94 V-0	1	Tin	-55 °C	105 ░C	Through Hole Right Angle	0.1 in	2.54 mm			Phosphor Bronze	4	Push-Pull	Square				All			Black	Female Socket	Polybutylene Terephthalate (PBT)	Solder	Receptacle	3.05 mm	0.12 in	0.12 in	3.05 mm
Samtec Inc. CES-104-02-L-D	UL94 V-0	2	Tin	-55 °C	125 °C	Through Hole	0.1 in	2.54 mm			Phosphor Bronze	8	Push-Pull	Square	Gold	10 çin	0.25 çm	All	2.54 mm	0.1 in	Black	Female Socket	Polybutylene Terephthalate (PBT)	Solder	Receptacle			0.223 in	5.66 mm
Samtec Inc. CES-104-01-L-D	UL94 V-0	2	Tin	-55 °C	125 °C	Through Hole	0.1 in	2.54 mm	0.128 "	3.25 mm	Phosphor Bronze	8	Push-Pull	Square	Gold	10 çin	0.25 çm	All	2.54 mm	0.1 in	Black	Female Socket	Polybutylene Terephthalate (PBT)	Solder	Receptacle
Samtec Inc. CES-104-01-F-S	UL94 V-0	1	Tin	-55 °C	125 °C	Through Hole	0.1 in	2.54 mm	0.128 "	3.25 mm	Phosphor Bronze	4	Push-Pull	Square	Gold	3 µin	0.076 µm	All			Black	Female Socket	Polybutylene Terephthalate (PBT)	Solder	Receptacle
Samtec Inc. CES-104-02-T-D	UL94 V-0	2	Tin	-55 °C	105 ░C	Through Hole	0.1 in	2.54 mm			Phosphor Bronze	8	Push-Pull	Square				All	2.54 mm	0.1 in	Black	Female Socket	Polybutylene Terephthalate (PBT)	Solder	Receptacle			0.223 in	5.66 mm
Samtec Inc. CES-104-01-S-S	UL94 V-0	1	Tin	-55 °C	125 °C	Through Hole	0.1 in	2.54 mm	0.128 "	3.25 mm	Phosphor Bronze	4	Push-Pull	Square	Gold	30 Áin	0.76 Ám	All			Black	Female Socket	Polybutylene Terephthalate (PBT)	Solder	Receptacle
Samtec Inc. CES-104-02-S-S-RA	UL94 V-0	1	Tin	-55 °C	125 °C	Through Hole Right Angle	0.1 in	2.54 mm			Phosphor Bronze	4	Push-Pull	Square	Gold	30 Áin	0.76 Ám	All			Black	Female Socket	Polybutylene Terephthalate (PBT)	Solder	Receptacle	3.05 mm	0.12 in	0.12 in	3.05 mm
Samtec Inc. CES-104-02-G-S	UL94 V-0	1	Gold	-55 °C	125 °C	Through Hole	0.1 in	2.54 mm			Phosphor Bronze	4	Push-Pull	Square	Gold	20 µin	0.51 µm	All			Black	Female Socket	Polybutylene Terephthalate (PBT)	Solder	Receptacle			0.223 in	5.66 mm	3 µin	0.076 µm
Samtec Inc. CES-104-02-G-S-RA	UL94 V-0	1	Gold	-55 °C	125 °C	Through Hole Right Angle	0.1 in	2.54 mm			Phosphor Bronze	4	Push-Pull	Square	Gold	20 µin	0.51 µm	All			Black	Female Socket	Polybutylene Terephthalate (PBT)	Solder	Receptacle	3.05 mm	0.12 in	0.12 in	3.05 mm	3 µin	0.076 µm
