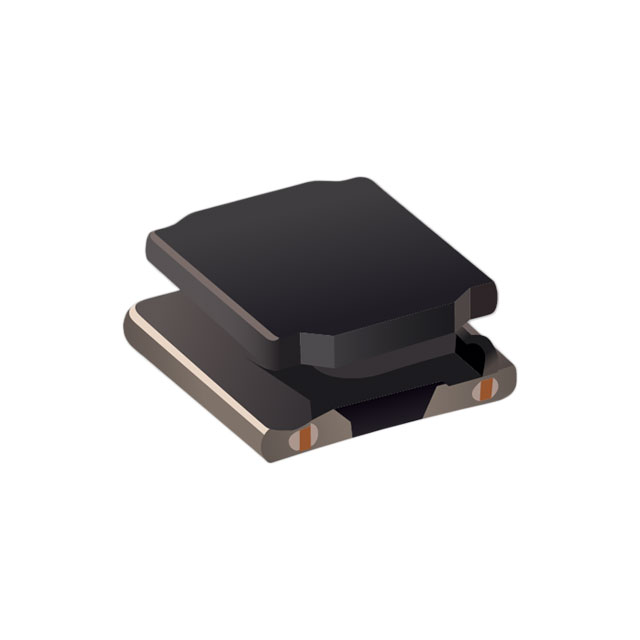

SRN4018TA-6R8M - SRN4018TA

SRN4018TA-6R8M

Active
Bourns Inc.

INDUCTOR, 6.8UH, 1.45A, 20%, AEC-Q200

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetEnhanced Product Overview EN+1
SRN4018TA-6R8M - SRN4018TA

SRN4018TA-6R8M

Active
Bourns Inc.

INDUCTOR, 6.8UH, 1.45A, 20%, AEC-Q200

Deep-Dive with AI

DocumentsDatasheetEnhanced Product Overview EN+1

Technical Specifications

Parameters and characteristics for this part

SpecificationSRN4018TA-6R8M
Current - Saturation (Isat)1.7 A
Current Rating (Amps)1.7 A
DC Resistance (DCR)98 mOhm
Frequency - Self Resonant40 MHz
Height - Seated (Max) [Max]0.071 "
Height - Seated (Max) [Max]1.8 mm
Inductance6.8 µH
Inductance Frequency - Test100 kHz
Material - CoreFerrite
Mounting TypeSurface Mount
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Package / CaseNonstandard
Q @ Freq100 kHz, 10
RatingsAEC-Q200
ShieldingShielded
Size / Dimension [x]4 mm
Size / Dimension [x]0.157 "
Size / Dimension [y]0.157 in
Size / Dimension [y]4 mm
Tolerance20 %
TypeWirewound, Drum Core

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.46
10$ 0.40
25$ 0.36
50$ 0.33
100$ 0.29
250$ 0.28
500$ 0.24
1000$ 0.21
Digi-Reel® 1$ 0.46
10$ 0.40
25$ 0.36
50$ 0.33
100$ 0.29
250$ 0.28
500$ 0.24
1000$ 0.21
Tape & Reel (TR) 3000$ 0.20
6000$ 0.20
15000$ 0.19
30000$ 0.18
NewarkEach (Supplied on Cut Tape) 1$ 0.34
10$ 0.31
25$ 0.30
50$ 0.29
100$ 0.28

Description

General part information

SRN4018TA Series

6.8 µH Shielded Drum Core, Wirewound Inductor 1.7 A 98mOhm Nonstandard
