999-19-210-06

Active

Preci-Dip

JUMPER MALE 2.54MM

Search across all available documentation for this part.

Active

Preci-Dip

JUMPER MALE 2.54MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	6000	$ 0.12

General part information

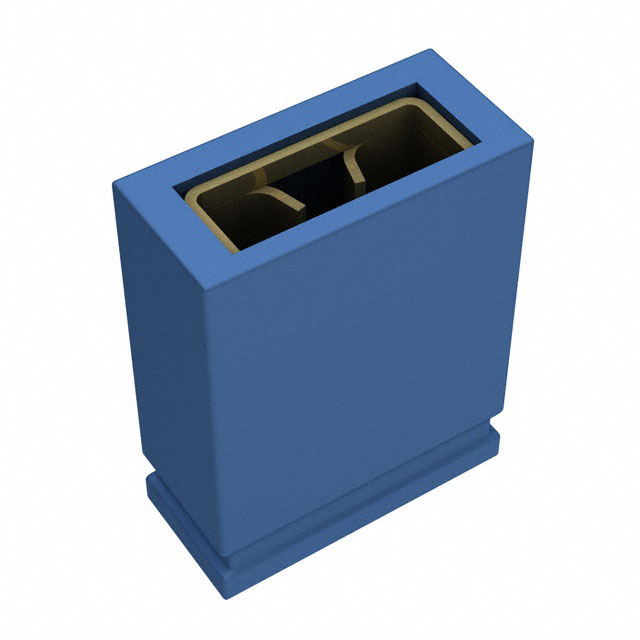

2 (1 x 2) Position Shunt Connector Blue Closed Top 0.100" (2.54mm) Gold

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	999-19-210-06	999-19 Series

Color	Blue	Red, Blue, Black
Contact Finish	Gold	Gold
Contact Finish Thickness	Flash	Flash
Current Rating (Amps)	3 A	3 A
Gender	Female Sockets	Female Sockets
Height [z]	0.197 "	0.197 "
Height [z]	5 mm	5 mm
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0	UL94 V-0
Number of Positions or Pins (Grid) [custom]	1 x 2	1 x 2
Number of Positions or Pins (Grid) [custom]	2	2
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Type	Closed Top	Closed Top

JUMPER MALE 2.54MM

Part	Height [z]	Height [z]	Contact Finish Thickness	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Color	Contact Finish	Type	Pitch [x]	Pitch [x]	Gender	Housing Material	Material Flammability Rating	Current Rating (Amps)
Preci-Dip 999-19-210-02	0.197 "	5 mm	Flash	1 x 2	2	Red	Gold	Closed Top	2.54 mm	0.1 in	Female Sockets
Preci-Dip 999-19-210-06	0.197 "	5 mm	Flash	1 x 2	2	Blue	Gold	Closed Top	2.54 mm	0.1 in	Female Sockets	Polybutylene Terephthalate (PBT), Glass Filled	UL94 V-0	3 A
Preci-Dip 999-19-320-00	0.197 "	5 mm	Flash	1 x 2	2	Black	Gold	Closed Top	2.54 mm	0.1 in	Female Sockets	Polybutylene Terephthalate (PBT), Glass Filled	UL94 V-0	3 A
Preci-Dip 999-19-310-00	0.197 "	5 mm	Flash	1 x 2	2	Black	Gold	Closed Top	2.54 mm	0.1 in	Female Sockets	Polybutylene Terephthalate (PBT), Glass Filled	UL94 V-0	3 A
Preci-Dip 999-19-220-00	0.197 "	5 mm	Flash	1 x 2	2	Black	Gold	Closed Top	2.54 mm	0.1 in	Female Sockets	Polybutylene Terephthalate (PBT), Glass Filled	UL94 V-0	3 A
Preci-Dip 999-19-210-00	0.197 "	5 mm	Flash	1 x 2	2	Black	Gold	Closed Top	2.54 mm	0.1 in	Female Sockets	Polybutylene Terephthalate (PBT), Glass Filled	UL94 V-0	3 A
Preci-Dip 999-19-310-02	0.197 "	5 mm	Flash	1 x 2	2	Red	Gold	Closed Top	2.54 mm	0.1 in	Female Sockets	Polybutylene Terephthalate (PBT), Glass Filled	UL94 V-0	3 A
Preci-Dip 999-19-310-06	0.197 "	5 mm	Flash	1 x 2	2	Blue	Gold	Closed Top	2.54 mm	0.1 in	Female Sockets	Polybutylene Terephthalate (PBT), Glass Filled	UL94 V-0	3 A
