2967293
ActivePhoenix Contact

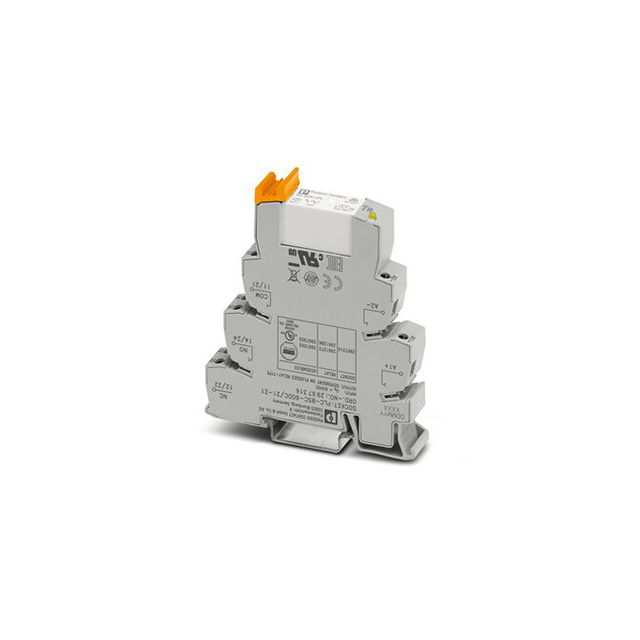

RELAY GEN PURPOSE DPDT 6A 60V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2967293
ActivePhoenix Contact
RELAY GEN PURPOSE DPDT 6A 60V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2967293 | 29672 Series |
|---|---|---|
| Approval Agency | UKCA, CE | cULus, DNV, UL, EAC, UKCA, CE |
| Coil Current | 10 mA | 10 - 33 mA |
| Coil Resistance | 6 kOhms | 2.4 - 364 kOhms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 60 VDC | 12 - 60 VDC |
| Contact Form | DPDT (2 Form C) | DPDT (2 Form C) |
| Contact Material | Silver Nickel (AgNi) | Silver (Ag), Gold (Au), Silver Nickel (AgNi) |
| Contact Rating (Current) | 6 A | 6 - 50 mA |
| Features | Lighted Indicator, Socket Included | Lighted Indicator, Socket Included |
| Mounting Type | DIN Rail | DIN Rail |
| Operate Time | 8 ms | 8 ms |
| Operating Temperature [Max] | 60 °C | 60 °C |
| Operating Temperature [Min] | -40 °C | -40 - -25 °C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 10 ms | 10 ms |
| Switching Voltage | 250 VAC, 250 VDC | 30 - 250 VDC |
| Termination Style | Screw Terminal | Screw Terminal |
29672 Series
RELAY GEN PURPOSE DPDT 50MA 12V
| Part | Operate Time | Termination Style | Relay Type | Switching Voltage | Approval Agency | Coil Voltage | Features | Operating Temperature [Min] | Operating Temperature [Max] | Coil Current | Contact Form | Contact Material | Contact Rating (Current) | Coil Resistance | Release Time | Mounting Type | Coil Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2967277 | 8 ms | Screw Terminal | General Purpose | 30 VAC, 36 VDC | cULus, DNV, EAC, UL | 12 VDC | Lighted Indicator, Socket Included | -40 °C | 60 °C | 33 mA | DPDT (2 Form C) | Gold (Au), Silver (Ag) | 50 mA | 364 kOhms | 10 ms | DIN Rail | Non Latching |
Phoenix Contact 2967293 | 8 ms | Screw Terminal | General Purpose | 250 VAC, 250 VDC | CE, UKCA | 60 VDC | Lighted Indicator, Socket Included | -40 °C | 60 °C | 10 mA | DPDT (2 Form C) | Silver Nickel (AgNi) | 6 A | 6 kOhms | 10 ms | DIN Rail | Non Latching |
Phoenix Contact 2967280 | 8 ms | Screw Terminal | General Purpose | 30 VAC, 36 VDC | cULus, DNV, EAC, UL | 48 VDC | Lighted Indicator, Socket Included | -25 °C | 60 °C | 20 mA | DPDT (2 Form C) | Gold (Au), Silver (Ag) | 50 mA | 2.4 kOhms | 10 ms | DIN Rail | Non Latching |
Phoenix Contact 2967248 | 8 ms | Screw Terminal | General Purpose | 250 VAC, 250 VDC | CE, UKCA | 48 VDC | Lighted Indicator, Socket Included | -25 °C | 60 °C | 20 mA | DPDT (2 Form C) | Silver Nickel (AgNi) | 6 A | 2.4 kOhms | 10 ms | DIN Rail | Non Latching |
Phoenix Contact 2967235 | 8 ms | Screw Terminal | General Purpose | 250 VAC, 250 VDC | CE, UKCA | 12 VDC | Lighted Indicator, Socket Included | -40 °C | 60 °C | 33 mA | DPDT (2 Form C) | Silver Nickel (AgNi) | 6 A | 364 Ohms | 10 ms | DIN Rail | Non Latching |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
29672 Series
General Purpose Relay DPDT (2 Form C) 60VDC Coil DIN Rail
