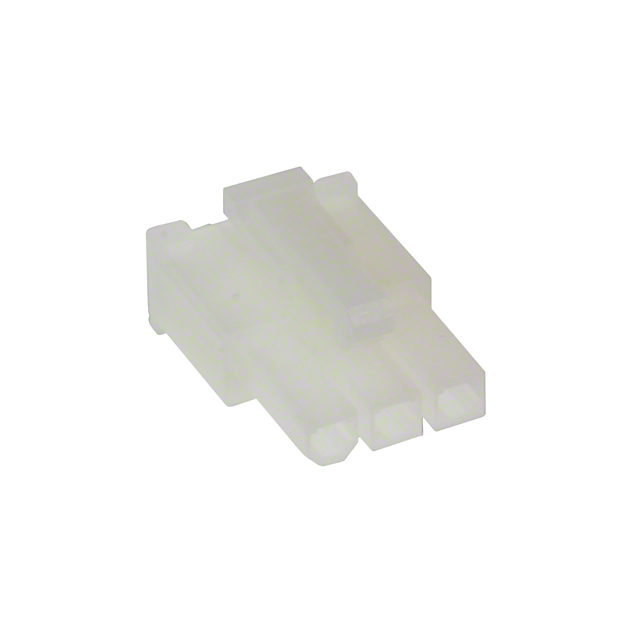

DMH-03-S

Active

Adam Tech

CONN RCPT HSG 3POS 4.20MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications +1

DMH-03-S

Active

Adam Tech

CONN RCPT HSG 3POS 4.20MM

Deep-Dive with AI

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DMH-03-S

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	4.2 mm
Pitch [x]	0.165 in

DMH Series

Part	Contact Termination	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Contact Type	Color	Note	Number of Positions	Fastening Type	Connector Type	Number of Rows	Pitch [x]	Pitch [x]	Row Spacing	Row Spacing
Adam Tech DMH-02-S	Crimp	Free Hanging (In-Line)	-25 °C	85 °C	Polyamide (PA66) Nylon 6/6	Female Socket	Natural	Contacts Not Included	2	Latch Lock	Receptacle	1	4.2 mm	0.165 in
Adam Tech DMH-18	Crimp	Free Hanging (In-Line)	-40 °C	105 ░C	Polyamide (PA66) Nylon 6/6	Female Socket	Natural	Contacts Not Included	18	Latch Lock	Receptacle	2	4.2 mm	0.165 in	4.2 mm	0.165 in
Adam Tech DMH-22	Crimp	Free Hanging (In-Line)	-40 °C	105 ░C	Polyamide (PA66) Nylon 6/6	Female Socket	Natural	Contacts Not Included	22 positions	Latch Lock	Receptacle	2	4.2 mm	0.165 in	4.2 mm	0.165 in
Adam Tech DMH-03-S	Crimp	Free Hanging (In-Line)	-25 °C	85 °C	Polyamide (PA66) Nylon 6/6	Female Socket	Natural	Contacts Not Included		Latch Lock	Receptacle	1	4.2 mm	0.165 in
Adam Tech DMH-04-V0	Crimp	Free Hanging (In-Line)	-40 °C	105 ░C	Polyamide (PA66) Nylon 6/6	Female Socket	Natural	Contacts Not Included	4	Latch Lock	Receptacle	2	4.2 mm	0.165 in	4.2 mm	0.165 in
Adam Tech DMH-12	Crimp	Free Hanging (In-Line)	-40 °C	105 ░C	Polyamide (PA66) Nylon 6/6	Female Socket	Natural	Contacts Not Included	12	Latch Lock	Receptacle	2	4.2 mm	0.165 in	4.2 mm	0.165 in
Adam Tech DMH-20	Crimp	Free Hanging (In-Line)	-40 °C	105 ░C	Polyamide (PA66) Nylon 6/6	Female Socket	Natural	Contacts Not Included	20	Latch Lock	Receptacle	2	4.2 mm	0.165 in	4.2 mm	0.165 in
Adam Tech DMH-24	Crimp	Free Hanging (In-Line)	-40 °C	105 ░C	Polyamide (PA66) Nylon 6/6	Female Socket	Natural	Contacts Not Included	24	Latch Lock	Receptacle	2	4.2 mm	0.165 in	4.2 mm	0.165 in
Adam Tech DMH-06-V0	Crimp	Free Hanging (In-Line)	-40 °C	105 ░C	Polyamide (PA66) Nylon 6/6	Female Socket	Natural	Contacts Not Included	6	Latch Lock	Receptacle	2	4.2 mm	0.165 in	4.2 mm	0.165 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 0.46
		10	$ 0.35
		25	$ 0.32
		50	$ 0.29
		100	$ 0.27
		250	$ 0.24
		500	$ 0.23
