2FA1-NLSP-PCBB6

Active

Amphenol RF

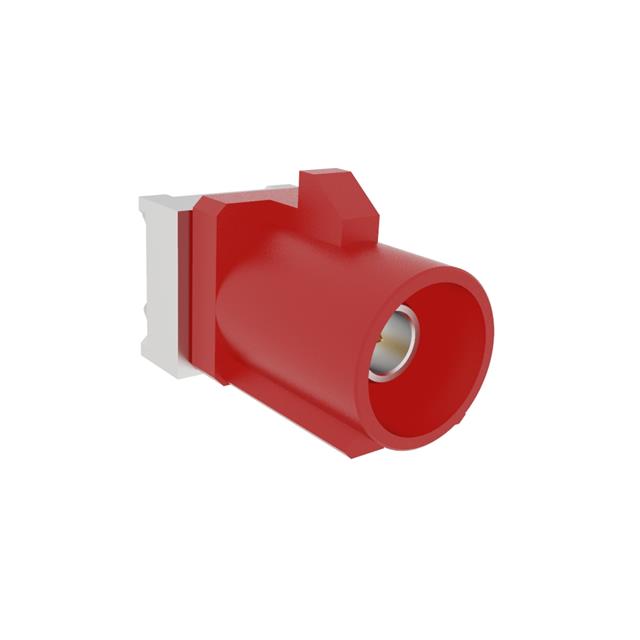

FAKRA GEN 2 PCB THROUGH HOLE STRAIGHT PLUG 50 OHM L KEY CODE

Deep-Dive with AI

Search across all available documentation for this part.

2FA1-NLSP-PCBB6

Active

Amphenol RF

FAKRA GEN 2 PCB THROUGH HOLE STRAIGHT PLUG 50 OHM L KEY CODE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2FA1-NLSP-PCBB6

Body Finish	Tin
Body Material	Zinc Die Cast
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMB, Fakra
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Locking Ramp
Features	Code L
Frequency - Max [Max]	3 GHz
Housing Color	Carmine, Red
Impedance	50 Ohms
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder

fakra-generation-2 Series

Part	Body Finish	Center Contact Material	Contact Termination	Features	Operating Temperature [Max]	Operating Temperature [Min]	Includes	Frequency - Max [Max]	Housing Color	Fastening Type	Body Material	Mounting Type	Impedance	Dielectric Material	Number of Ports	Insertion Loss	Cable Group	Connector Type	Shield Termination	Center Contact Plating	Connector Style
Amphenol RF 2FA1-NBSJ-C04-0	Nickel	Phosphor Bronze	Crimp	Code B	100 °C	-40 °C	1 Connector 1 Contact 1 Ferrule	6000 MHz	Cream	Latch Lock	Zinc Die Cast	Free Hanging (In-Line)	50 Ohms	Polytetrafluoroethylene (PTFE)	1	0.3 dB	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Female Socket Jack	Crimp	Gold	Fakra SMB
Amphenol RF 2FA1-NCSJ-C04-6	Nickel	Phosphor Bronze	Crimp	Code C	100 °C	-40 °C	1 Connector 1 Contact 1 Ferrule	6000 MHz	Blue Signal	Latch Lock	Zinc Die Cast	Free Hanging (In-Line)	50 Ohms	Polytetrafluoroethylene (PTFE)	1	0.3 dB	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Female Socket Jack	Crimp	Gold	Fakra SMB
Amphenol RF 2FA1-NZSP-C04-1	Nickel	Brass	Crimp	Code Z	115 °C	-40 °C	1 Connector 1 Contact 1 Ferrule	4 GHz		Locking Ramp	Zinc Die Cast	Free Hanging (In-Line)	50 Ohms	Polymethylpentene (PMP) Polytetrafluoroethylene (PTFE)	1	0.3 dB	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Male Pin Plug	Crimp	Gold	Fakra SMB
Amphenol RF 2FA1-NBRP-PCB-6	Tin	Brass	Solder	Code B	165 °C	-65 ░C		4 GHz	Cream	Locking Ramp	Zinc Die Cast	Through Hole Right Angle	50 Ohms	Polytetrafluoroethylene (PTFE)	1			Male Pin Plug	Solder	Gold	Fakra SMB
Amphenol RF 2FA1-NDRP-PCB-6	Tin	Brass	Solder	Code D	165 °C	-65 ░C		4 GHz	Claret Violet	Locking Ramp	Zinc Die Cast	Through Hole Right Angle	50 Ohms	Polytetrafluoroethylene (PTFE)	1			Male Pin Plug	Solder	Gold	Fakra SMB
Amphenol RF 2FA1-NLSP-PCBB6	Tin	Brass	Solder	Code L	85 °C	-40 °C		3 GHz	Carmine Red	Locking Ramp	Zinc Die Cast	Through Hole	50 Ohms	Polytetrafluoroethylene (PTFE)	1			Male Pin Plug	Solder	Gold	Fakra SMB
Amphenol RF 2FA1-NDSJ-C04-0	Nickel	Phosphor Bronze	Crimp	Code D	100 °C	-40 °C	1 Connector 1 Contact 1 Ferrule	6000 MHz	Claret Violet	Latch Lock	Zinc Die Cast	Free Hanging (In-Line)	50 Ohms	Polytetrafluoroethylene (PTFE)	1	0.3 dB	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Female Socket Jack	Crimp	Gold	Fakra SMB
Amphenol RF 2FA1-NHSP-PCBB6	Tin	Brass	Solder	Code H	85 °C	-40 °C		3 GHz	Heather Violet	Locking Ramp	Zinc Die Cast	Through Hole	50 Ohms	Polytetrafluoroethylene (PTFE)	1			Male Pin Plug	Solder	Gold	Fakra SMB
Amphenol RF 2FA1-NASJ-C04-6	Nickel	Phosphor Bronze	Crimp	Code A	100 °C	-40 °C	1 Connector 1 Contact 1 Ferrule	4 GHz	Black Jet	Latch Lock	Zinc Die Cast	Free Hanging (In-Line)	50 Ohms	Polytetrafluoroethylene (PTFE)	1	0.3 dB	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Female Socket Jack	Crimp	Gold	Fakra SMB
Amphenol RF 2FA1-NASP-C04-1	Nickel	Brass	Crimp	Code A	115 °C	-40 °C	1 Connector 1 Contact 1 Ferrule	4 GHz	Black Jet	Locking Ramp	Zinc Die Cast	Free Hanging (In-Line)	50 Ohms	Polymethylpentene (PMP) Polytetrafluoroethylene (PTFE)	1	0.3 dB	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Male Pin Plug	Crimp	Gold	Fakra SMB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.48
		10	$ 2.26
		25	$ 2.14
		40	$ 2.09
		80	$ 1.99
		230	$ 1.75
Newark	Each	250	$ 3.40
		500	$ 3.30
		1000	$ 2.81

Description

General part information

fakra-generation-2 Series

SMB, Fakra Connector Plug, Male Pin 50 Ohms Through Hole Solder

Documents

Technical documentation and resources

No documents available
