EN2P3M20PK
ActiveSwitchcraft Inc.

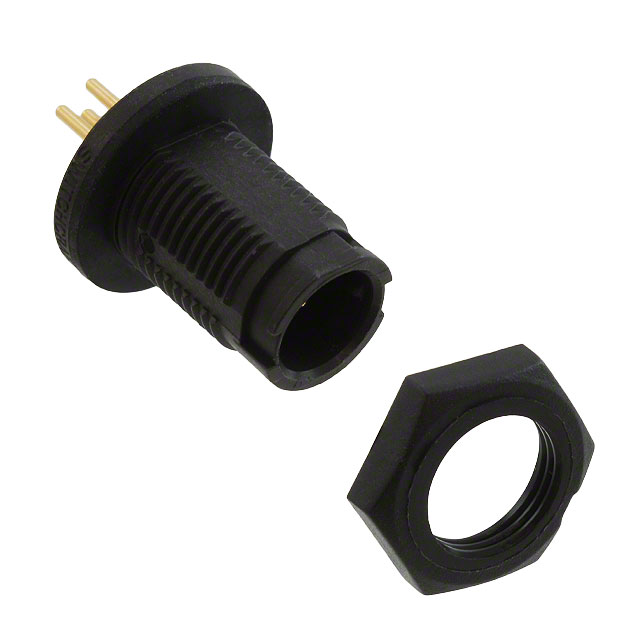

CONN RCPT MALE 3POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet

EN2P3M20PK
ActiveSwitchcraft Inc.
CONN RCPT MALE 3POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
Specification | EN2P3M20PK | EN2P3M Series |
---|---|---|
Applications | Marine, Communication Systems, Medical, Industrial | Marine, Communication Systems, Medical, Industrial |
Color | Black | Black |
Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
Contact Finish - Mating | Gold | Gold |
Contact Material | Copper Alloy | Copper Alloy |
Current Rating (Amps) | 2 A | 2 A |
Fastening Type | Bayonet Lock | Bayonet Lock |
Ingress Protection | IP68, IP66, IP67 | IP68, IP66, IP67 |
Insert Material | Elastomer | Elastomer |
Material Flammability Rating | UL94 V-0 | UL94 V-0 |
Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
Mounting Type | Through Hole, Panel Mount | Through Hole, Panel Mount |
Operating Temperature [Max] | 85 °C | 85 °C |
Operating Temperature [Min] | -40 °C | -40 °C |
Orientation | Keyed | Keyed |
Primary Material | Plastic | Plastic |
Shielding | Unshielded | Unshielded |
Termination | Solder | Crimp, Solder Cup, Solder |
Voltage Rating | 125 VAC | 125 VAC |
EN2P3M Series
CONN RCPT MALE 3POS GOLD CRIMP
Part | Connector Type | Contact Material | Current Rating (Amps) | Contact Finish - Mating | Voltage Rating | Insert Material | Primary Material | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Ingress Protection | Material Flammability Rating | Shielding | Applications | Termination | Mounting Feature | Color | Orientation | Mounting Type |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. EN2P3M20K | Male Pins, Receptacle | Copper Alloy | 2 A | Gold | 125 VAC | Elastomer | Plastic | 85 °C | -40 °C | Bayonet Lock | IP66, IP67, IP68 | UL94 V-0 | Unshielded | Communication Systems, Industrial, Marine, Medical | Crimp, Solder Cup | Bulkhead - Front Side Nut | Black | Keyed | |
Switchcraft Inc. EN2P3M20P | Male Pins, Receptacle | Copper Alloy | 2 A | Gold | 125 VAC | Elastomer | Plastic | 85 °C | -40 °C | Bayonet Lock | IP66, IP67, IP68 | UL94 V-0 | Unshielded | Communication Systems, Industrial, Marine, Medical | Solder | Bulkhead - Front Side Nut | Black | Keyed | Panel Mount, Through Hole |
Switchcraft Inc. EN2P3M20PK | Male Pins, Receptacle | Copper Alloy | 2 A | Gold | 125 VAC | Elastomer | Plastic | 85 °C | -40 °C | Bayonet Lock | IP66, IP67, IP68 | UL94 V-0 | Unshielded | Communication Systems, Industrial, Marine, Medical | Solder | Bulkhead - Front Side Nut | Black | Keyed | Panel Mount, Through Hole |
Switchcraft Inc. EN2P3M20 | Male Pins, Receptacle | Copper Alloy | 2 A | Gold | 125 VAC | Elastomer | Plastic | 85 °C | -40 °C | Bayonet Lock | IP66, IP67, IP68 | UL94 V-0 | Unshielded | Communication Systems, Industrial, Marine, Medical | Crimp, Solder Cup | Bulkhead - Front Side Nut | Black | Keyed |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Distributor | Package | Quantity | $ | |
---|---|---|---|---|
Digikey | Bulk | 1 | $ 4.26 | |
10 | $ 3.85 | |||
25 | $ 3.64 | |||
50 | $ 3.55 | |||
100 | $ 3.37 | |||
300 | $ 3.13 |
Description
General part information
EN2P3M Series
3 Position Circular Connector Receptacle, Male Pins Solder
