EN2P3M20K

Active

Switchcraft Inc.

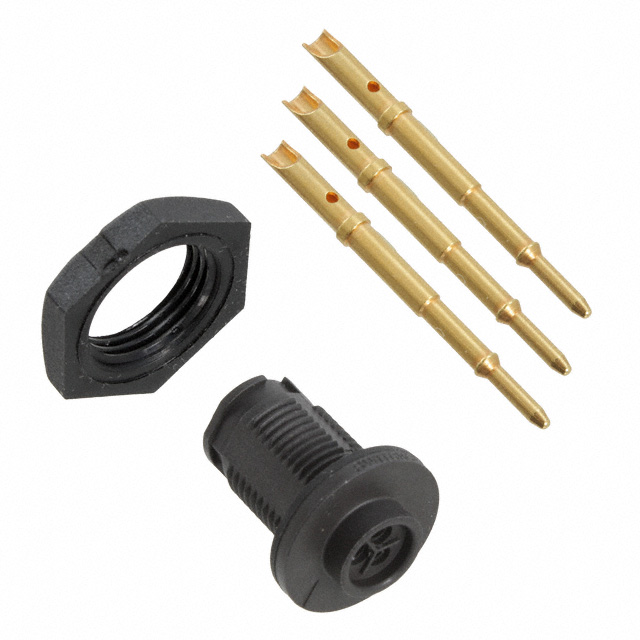

CONN RCPT MALE 3POS GOLD CRIMP

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT MALE 3POS GOLD CRIMP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.29

General part information

3 Position Circular Connector Receptacle, Male Pins Crimp or Solder Cup

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	EN2P3M20K	EN2P3M Series

Applications	Marine, Communication Systems, Medical, Industrial	Marine, Communication Systems, Medical, Industrial
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	2 A	2 A
Fastening Type	Bayonet Lock	Bayonet Lock
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	-	Through Hole, Panel Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp, Solder Cup	Crimp, Solder Cup, Solder
Voltage Rating	125 VAC	125 VAC

CONN RCPT MALE 3POS GOLD CRIMP

Part	Connector Type	Contact Material	Current Rating (Amps)	Contact Finish - Mating	Voltage Rating	Insert Material	Primary Material	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Ingress Protection	Material Flammability Rating	Shielding	Applications	Termination	Mounting Feature	Color	Orientation	Mounting Type
Switchcraft Inc. EN2P3M20K	Male Pins, Receptacle	Copper Alloy	2 A	Gold	125 VAC	Elastomer	Plastic	85 °C	-40 °C	Bayonet Lock	IP66, IP67, IP68	UL94 V-0	Unshielded	Communication Systems, Industrial, Marine, Medical	Crimp, Solder Cup	Bulkhead - Front Side Nut	Black	Keyed
Switchcraft Inc. EN2P3M20P	Male Pins, Receptacle	Copper Alloy	2 A	Gold	125 VAC	Elastomer	Plastic	85 °C	-40 °C	Bayonet Lock	IP66, IP67, IP68	UL94 V-0	Unshielded	Communication Systems, Industrial, Marine, Medical	Solder	Bulkhead - Front Side Nut	Black	Keyed	Panel Mount, Through Hole
Switchcraft Inc. EN2P3M20PK	Male Pins, Receptacle	Copper Alloy	2 A	Gold	125 VAC	Elastomer	Plastic	85 °C	-40 °C	Bayonet Lock	IP66, IP67, IP68	UL94 V-0	Unshielded	Communication Systems, Industrial, Marine, Medical	Solder	Bulkhead - Front Side Nut	Black	Keyed	Panel Mount, Through Hole
Switchcraft Inc. EN2P3M20	Male Pins, Receptacle	Copper Alloy	2 A	Gold	125 VAC	Elastomer	Plastic	85 °C	-40 °C	Bayonet Lock	IP66, IP67, IP68	UL94 V-0	Unshielded	Communication Systems, Industrial, Marine, Medical	Crimp, Solder Cup	Bulkhead - Front Side Nut	Black	Keyed
