145655040000829+T
ActiveKYOCERA AVX

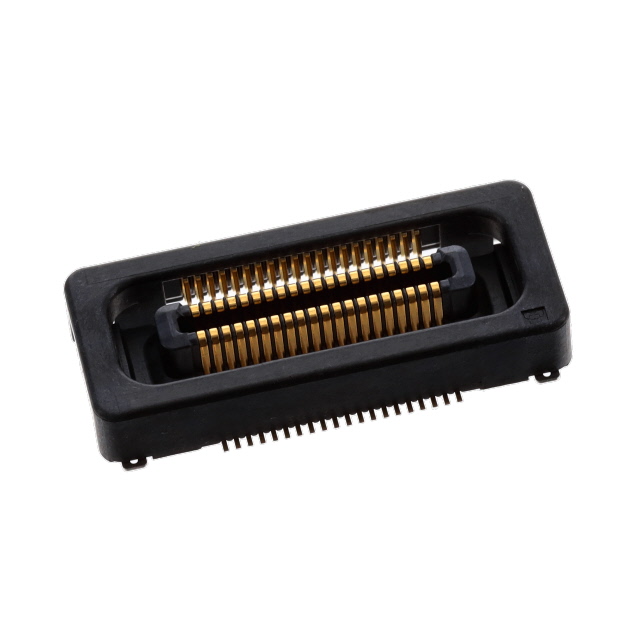

PLUG 0.5MM - 4-7MM - VERT -FLOAT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
145655040000829+T
ActiveKYOCERA AVX
PLUG 0.5MM - 4-7MM - VERT -FLOAT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 145655040000829+T | 145655 Series |
|---|---|---|
| Connector Type | Plug, Floating | Plug, Floating |
| Contact Finish | Gold | Gold |
| Features | Solder Retention, Board Guide | Solder Retention, Board Guide |
| Height Above Board | 3.05 mm | 3.05 mm |
| Height Above Board | 0.12 in | 0.12 in |
| Mated Stacking Heights | 4 mm, 6 mm, 7 mm | 4 - 7 mm |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Positions | 40 | 30 - 100 |
| Number of Rows | 2 | 2 |
| Pitch [x] | 0.5 mm | 0.5 mm |
| Pitch [x] | 0.02 in | 0.02 in |
145655 Series
PLUG 0.5MM - 4-7MM - VERT -FLOAT
| Part | Number of Positions | Number of Rows | Connector Type | Mated Stacking Heights | Contact Finish | Pitch [x] | Pitch [x] | Mounting Type | Height Above Board | Height Above Board | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|
KYOCERA AVX 145655080000829+T | 80 | 2 | Floating, Plug | 4 mm, 6 mm, 7 mm | Gold | 0.5 mm | 0.02 in | Surface Mount | 3.05 mm | 0.12 in | Board Guide, Solder Retention |
KYOCERA AVX 145655030000829+T | 30 | 2 | Floating, Plug | 4 mm, 6 mm, 7 mm | Gold | 0.5 mm | 0.02 in | Surface Mount | 3.05 mm | 0.12 in | Board Guide, Solder Retention |
KYOCERA AVX 145655050000829+T | 50 | 2 | Floating, Plug | 4 mm, 6 mm, 7 mm | Gold | 0.5 mm | 0.02 in | Surface Mount | 3.05 mm | 0.12 in | Board Guide, Solder Retention |
KYOCERA AVX 145655060000829+T | 60 | 2 | Floating, Plug | 4 mm, 6 mm, 7 mm | Gold | 0.5 mm | 0.02 in | Surface Mount | 3.05 mm | 0.12 in | Board Guide, Solder Retention |
KYOCERA AVX 145655100000829+T | 100 | 2 | Floating, Plug | 4 mm, 6 mm, 7 mm | Gold | 0.5 mm | 0.02 in | Surface Mount | 3.05 mm | 0.12 in | Board Guide, Solder Retention |
KYOCERA AVX 145655040000829+T | 40 | 2 | Floating, Plug | 4 mm, 6 mm, 7 mm | Gold | 0.5 mm | 0.02 in | Surface Mount | 3.05 mm | 0.12 in | Board Guide, Solder Retention |
