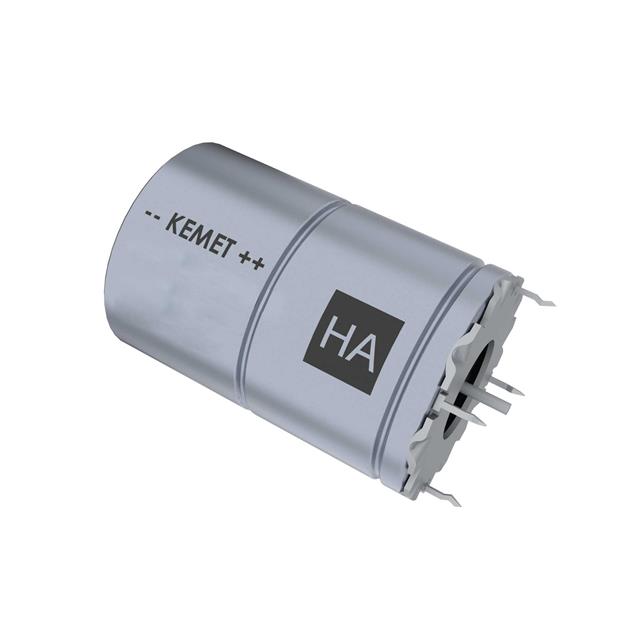

PHH227MKP3780ME4

Active

KEMET

HYBRID ALUMINIUM ELECTROLYTIC CAPACITOR, 780 ΜF, ± 20%, 63 V, RADIAL LEADED, 0.006 OHM

Search across all available documentation for this part.

Active

KEMET

HYBRID ALUMINIUM ELECTROLYTIC CAPACITOR, 780 ΜF, ± 20%, 63 V, RADIAL LEADED, 0.006 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	PHH227MKP3780ME4

Applications	Automotive
Capacitance	780 µF
ESR (Equivalent Series Resistance)	145 mOhm
Features	High Vibration
Height - Seated (Max) [Max]	1.445 in
Height - Seated (Max) [Max]	36.7 mm
Lead Spacing	15.24 mm
Lead Spacing	0.6 in
Lifetime @ Temp.	3000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Ratings	AEC-Q200
Ripple Current @ High Frequency	34.9 A
Ripple Current @ Low Frequency	6.98 A
Size / Dimension [diameter]	16.2 mm
Size / Dimension [diameter]	0.638 in
Tolerance	20 %
Type	Hybrid
Voltage - Rated	63 V

Part	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Ripple Current @ Low Frequency	Ripple Current @ High Frequency	Capacitance	Lead Spacing	Lead Spacing	Size / Dimension [diameter]	Size / Dimension [diameter]	ESR (Equivalent Series Resistance)	Lifetime @ Temp.	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Ratings	Features	Mounting Type	Type	Package / Case	Applications	Voltage - Rated
KEMET PHH227MLP4110ME4	20 %	125 °C	-40 °C	7.3 A	36.5 A	1100 µF	15.24 mm	0.6 in	0.717 in	18.2 mm	100 mOhms	3000 Hrs	1.445 in	36.7 mm	AEC-Q200	High Vibration	Through Hole	Hybrid	Radial Can	Automotive	63 V
KEMET PHH227MKP3780ME4	20 %	125 °C	-40 °C	6.98 A	34.9 A	780 µF	15.24 mm	0.6 in	0.638 in	16.2 mm	145 mOhm	3000 Hrs	1.445 in	36.7 mm	AEC-Q200	High Vibration	Through Hole	Hybrid	Radial Can	Automotive	63 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

780 µF 63 V Aluminum - Polymer Capacitors Radial, Can 145mOhm 3000 Hrs @ 125°C
