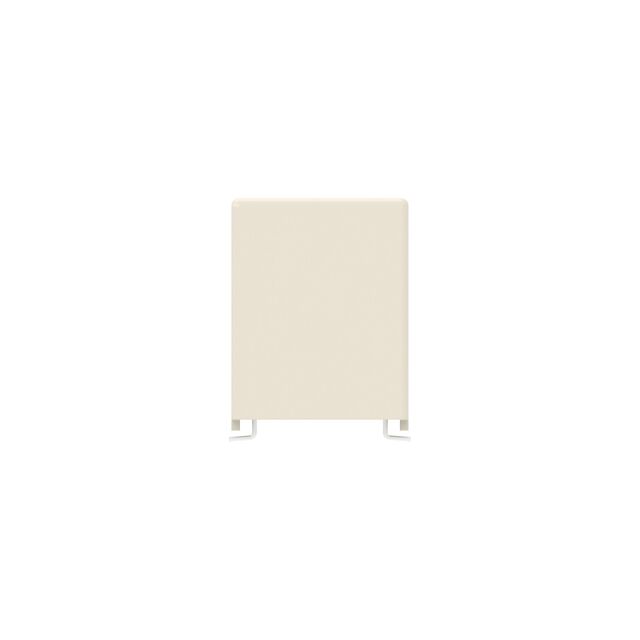

1422006-1
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GENERAL PURPOSE DPDT 2A 5V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1422006-1
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GENERAL PURPOSE DPDT 2A 5V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1422006-1 |
|---|---|
| Coil Resistance | 178 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 5 VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver Nickel (AgNi), Gold (Au) |
| Contact Rating (Current) | 2 A |
| Load - Max Switching | 440 W, 500 VA |
| Mounting Type | Surface Mount |
| Must Operate Voltage | 3.75 VDC |
| Must Release Voltage | 0.5 VDC |
| Operate Time | 4 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 4 ms |
| Switching Voltage | 250 VAC, 220 VDC |
| Termination Style | Gull Wing |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.98 | |
| 10 | $ 2.79 | |||
| 25 | $ 2.48 | |||
| 50 | $ 2.36 | |||
| 100 | $ 2.24 | |||
| 250 | $ 1.99 | |||
| 500 | $ 1.86 | |||
| 1000 | $ 1.74 | |||
| Tape & Reel (TR) | 2500 | $ 1.71 | ||
| 5000 | $ 1.68 | |||
Description
General part information
1422006 Series
General Purpose Relay DPDT (2 Form C) Surface Mount
