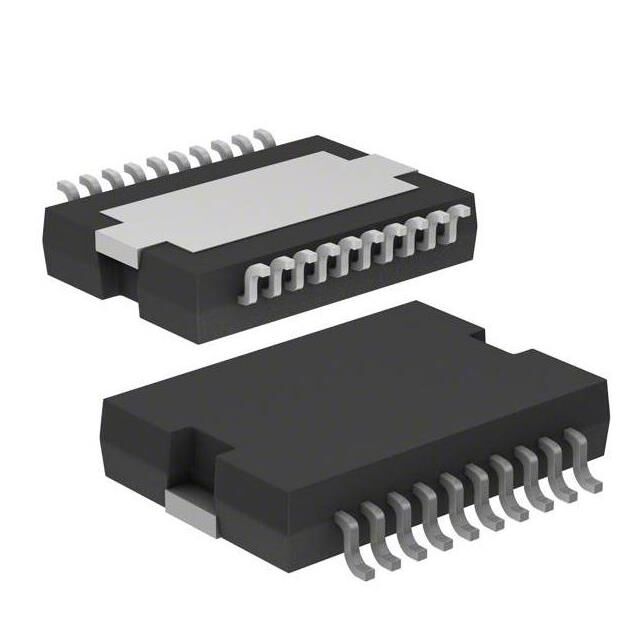

L9349-LF

Obsolete

STMicroelectronics

IC PWR SWITCH N-CHAN 1:1 PWRSO20

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L9349-LF

Obsolete

STMicroelectronics

IC PWR SWITCH N-CHAN 1:1 PWRSO20

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L9349-LF

Current - Output (Max)	3 A, 5 A
Fault Protection	Open Load Detect, Over Temperature
Features	Status Flag
Input Type	Non-Inverting
Interface	On/Off
Mounting Type	Surface Mount
Number of Outputs	4
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Low Side
Output Type	N-Channel
Package / Case	20-PowerSOIC
Package / Case [custom]	11 mm
Package / Case [custom]	0.433 in
Ratio - Input:Output [custom]	1:1
Rds On (Typ)	200 mOhm, 300 mOhm
Supplier Device Package	PowerSO-20
Switch Type	General Purpose
Voltage - Load [Max]	32 V
Voltage - Load [Min]	4.5 V
Voltage - Supply (Vcc/Vdd)	False

L9349-LF Series

Quad intelligent power low side switch

Part	Current - Output (Max)	Rds On (Typ)	Voltage - Load [Min]	Voltage - Load [Max]	Number of Outputs	Mounting Type	Output Type	Fault Protection	Voltage - Supply (Vcc/Vdd)	Ratio - Input:Output [custom]	Features	Package / Case [custom]	Package / Case [custom]	Package / Case	Input Type	Supplier Device Package	Interface	Output Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Switch Type
STMicroelectronics L9349-LF	3 A 5 A	200 mOhm 300 mOhm	4.5 V	32 V	4	Surface Mount	N-Channel	Open Load Detect Over Temperature		1:1	Status Flag	11 mm	0.433 in	20-PowerSOIC	Non-Inverting	PowerSO-20	On/Off	Low Side	150 °C	-40 °C	General Purpose
STMicroelectronics L9349TR-LF	3 A 5 A	200 mOhm 300 mOhm	4.5 V	32 V	4	Surface Mount	N-Channel	Open Load Detect Over Temperature		1:1	Status Flag	11 mm	0.433 in	20-PowerSOIC	Non-Inverting	PowerSO-20	On/Off	Low Side	150 °C	-40 °C	General Purpose

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

L9349-LF Series

The L9349 is a monolithic IC designed to drive inductive loads in low side configurations like hydraulic valves used in ABS systems.

Particular care has been taken to protect the device against failures, to avoid electromagnetic interferences and to offer extensive real time diagnostics.

The internal pull down current source at the ENable and INput pins assures, that the device is switched off, in case of open input conditions.
