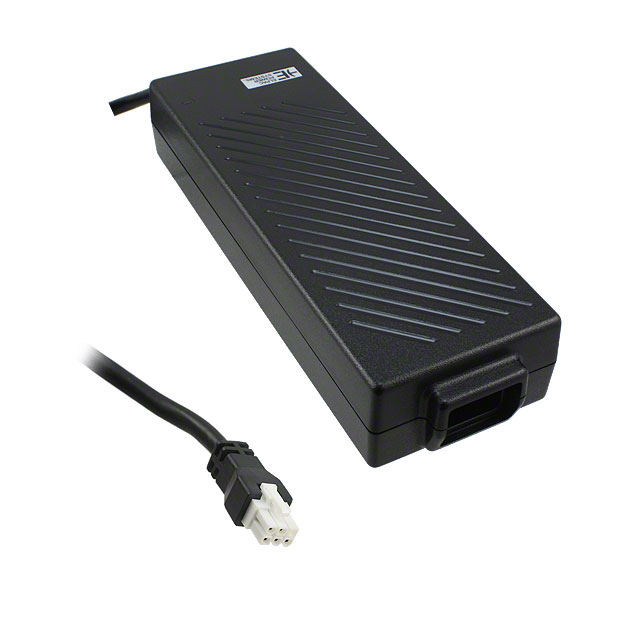

MWA220018A-13A

Active

Inventus Power

AC/DC DESKTOP ADAPTER 18V 220W

Search across all available documentation for this part.

Active

Inventus Power

AC/DC DESKTOP ADAPTER 18V 220W

Technical Specifications

Parameters and characteristics for this part

AC/DC DESKTOP ADAPTER 18V 220W

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Applications	Current - Output (Max) [Max]	No Load Power Consumption	Cord Length	Cord Length	Form	Input Type	Voltage - Output	Power (Watts)	Weight	Weight	Operating Temperature [Max]	Operating Temperature [Min]	Region Utilized	Input Connector	Output Connector	Efficiency	Approval Agency
Inventus Power MWA220018A-13A	8.2 "	73 mm	208 mm	2.9 in	1.6 "	39 mm	Medical	12.2 A	500 mW	1.22 m	48 in	Desktop (Class I)	Cord	18 V	220 W	952.5 g	2.1 lb	60 °C	0 °C	International	IEC 320-C14	Rectangular, 6 Position	Level V	CB, CE, cTUVus

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	240	$ 96.25

General part information

18V 220 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
