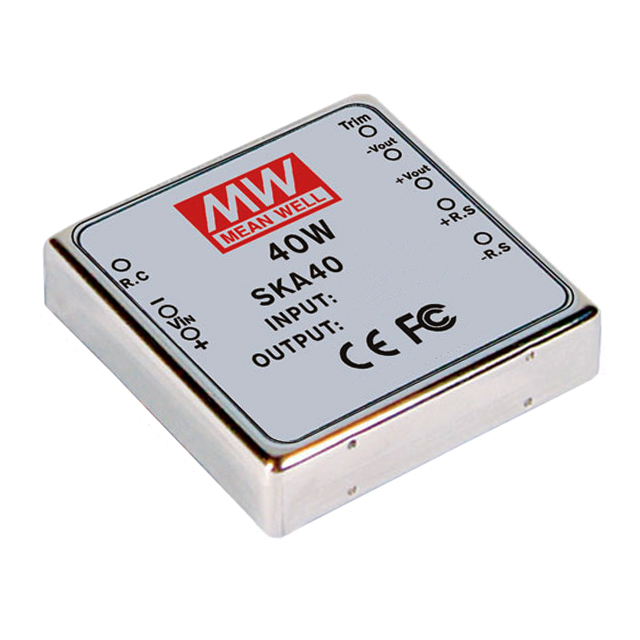

SKA40A-12
ActiveMEAN WELL USA Inc.
DC DC CONVERTER 12V 40W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SKA40A-12
ActiveMEAN WELL USA Inc.
DC DC CONVERTER 12V 40W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SKA40A-12 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 3.33 A |
| Efficiency | 90 % |
| Features | OVP, OCP, Remote On/Off, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 80 ¯C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-DIP Module |
| Power (Watts) | 40 W |
| Size / Dimension [x] | 50.8 mm |
| Size / Dimension [x] | 2 in |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [y] | 2 in |
| Size / Dimension [z] | 11 mm |
| Size / Dimension [z] | 0.43 " |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 18 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 47.60 | |
| 5 | $ 44.88 | |||
| 10 | $ 43.75 | |||
Description
General part information
SKA40 Series
Isolated Module DC DC Converter 1 Output 12V 3.33A 9V - 18V Input
