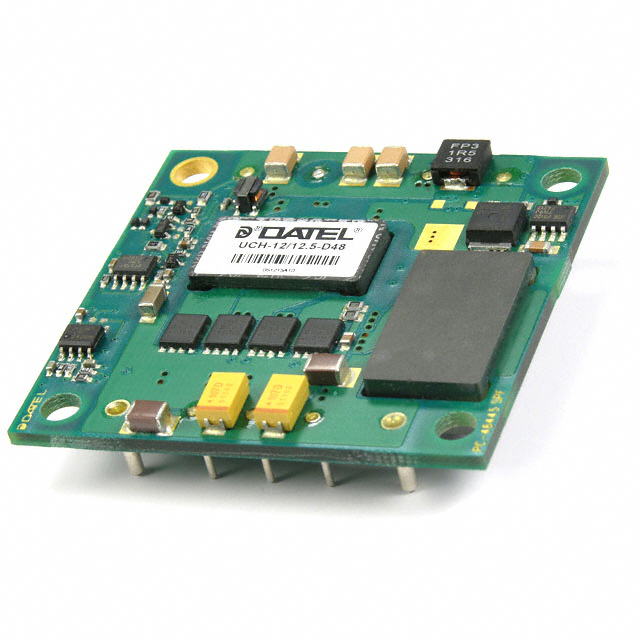

UCH-12/12.5-D48N-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 12V 150W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UCH-12/12.5-D48N-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 12V 150W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | UCH-12/12.5-D48N-C | UCH-12 Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Current - Output (Max) [Max] | 12.5 A | 4.2 - 12.5 A |
| Efficiency | 92.6 % | 90.5 - 92.6 % |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 9-DIP Module, 1/2 Brick | 9-DIP Module, 1/2 Brick |
| Power (Watts) | 150 W | 50 - 150 W |
| Size / Dimension [x] | 2.4 in | 2.4 in |
| Size / Dimension [x] | 61 mm | 61 mm |
| Size / Dimension [y] | 2.3 " | 2.3 " |
| Size / Dimension [y] | 58.4 mm | 58.4 mm |
| Size / Dimension [z] | 0.4 " | 0.4 " |
| Size / Dimension [z] | 10.2 mm | 10.2 mm |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V | 75 V |
| Voltage - Input (Min) [Min] | 36 V | 36 V |
| Voltage - Isolation | 2250 VDC | 2250 VDC |
| Voltage - Output 1 | 12 V | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
UCH-12 Series
DC DC CONVERTER 12V 50W
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Efficiency | Current - Output (Max) [Max] | Voltage - Input (Max) [Max] | Power (Watts) | Mounting Type | Voltage - Output 1 | Applications | Number of Outputs | Package / Case | Type | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Voltage - Input (Min) [Min] | Voltage - Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. UCH-12/4.2-D48NB-C | 85 °C | -40 °C | 90.5 % | 4.2 A | 75 V | 50 W | Through Hole | 12 V | ITE (Commercial) | 1 | 9-DIP Module, 1/2 Brick | Isolated Module | 2.4 in | 0.4 " | 61 mm | 2.3 " | 58.4 mm | 10.2 mm | 36 V | 2250 VDC |
Murata Power Solutions Inc. UCH-12/12.5-D48N-C | 85 °C | -40 °C | 92.6 % | 12.5 A | 75 V | 150 W | Through Hole | 12 V | ITE (Commercial) | 1 | 9-DIP Module, 1/2 Brick | Isolated Module | 2.4 in | 0.4 " | 61 mm | 2.3 " | 58.4 mm | 10.2 mm | 36 V | 2250 VDC |
Description
General part information
UCH-12 Series
Isolated Module DC DC Converter 1 Output 12V 12.5A 36V - 75V Input
