04J-BP-C01

Active

Grayhill Inc.

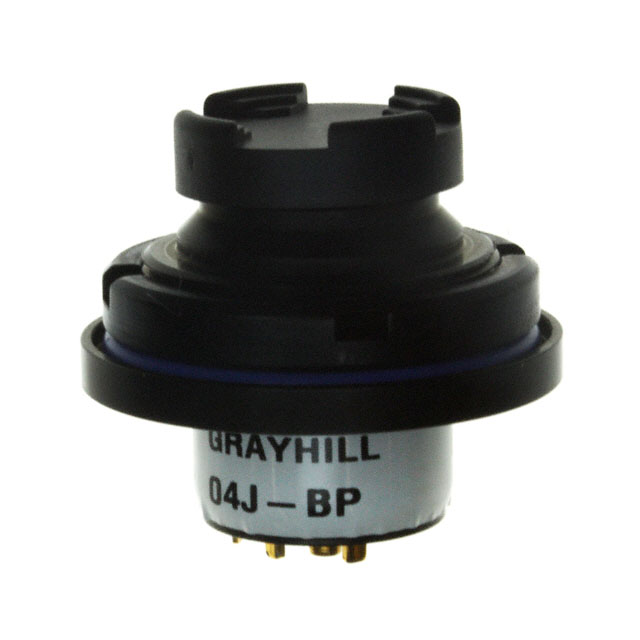

SWITCH NAV CONICAL 2A 115V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH NAV CONICAL 2A 115V

Technical Specifications

Parameters and characteristics for this part

Specification	04J-BP-C01

Actuator Type	Conical
Contact Finish	Gold
Contact Material	Nickel
Current Rating (Amps)	2 A
Electrical Life	100000 Cycles
Ingress Protection	IP68 - Dust Tight, Waterproof
Mechanical Life	100000 Cycles
Operating Force	454 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Output	Digital (Mechanical Switch)
Switch Function	4-Way Directional, Center Select
Termination Style	PC Pin
Type	2 Axis
Type	Navigation Switch
Voltage Rating - AC	115 V
Voltage Rating - DC	28 V

SWITCH NAV CONICAL 2A 115V

Part	Type	Type	Switch Function	Electrical Life	Output	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Operating Force	Actuator Type	Contact Finish	Termination Style	Current Rating (Amps)	Ingress Protection	Voltage Rating - DC	Mechanical Life	Voltage Rating - AC
Grayhill Inc. 04J-BP-C01	2 Axis	Navigation Switch	4-Way Directional, Center Select	100000 Cycles	Digital (Mechanical Switch)	Nickel	85 °C	-55 °C	454 gf	Conical	Gold	PC Pin	2 A	IP68 - Dust Tight, Waterproof	28 V	100000 Cycles	115 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 124.35

General part information

Navigation Switch, 2 - Axis Digital (Mechanical Switch) Output
