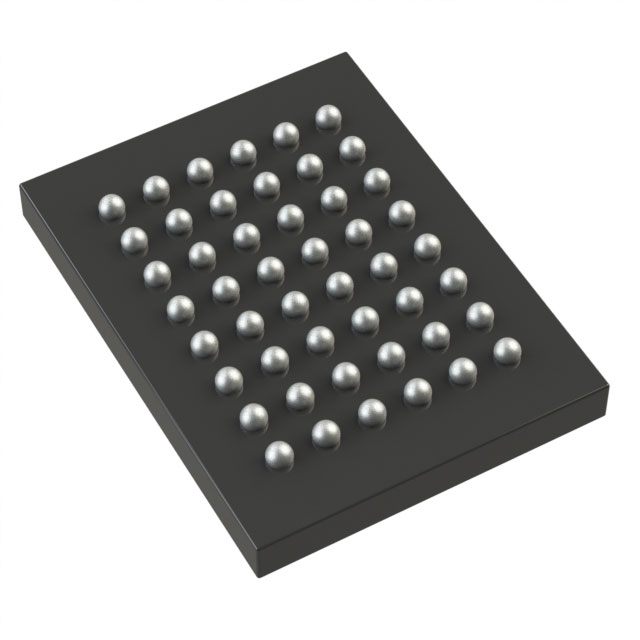

S29PL064J55BFI070

Active

Infineon Technologies

IC FLASH 64MBIT PARALLEL 48VFBGA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

S29PL064J55BFI070

Active

Infineon Technologies

IC FLASH 64MBIT PARALLEL 48VFBGA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	S29PL064J55BFI070

Access Time	55 ns
Memory Format	FLASH
Memory Interface	Parallel
Memory Organization	4M x 16
Memory Size	64 Gbit
Memory Type	Non-Volatile
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	48-VFBGA
Supplier Device Package	48-VFBGA
Supplier Device Package [x]	8.15
Supplier Device Package [y]	6.15
Technology	FLASH - NOR
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	2.7 V
Write Cycle Time - Word, Page [custom]	55 ns
Write Cycle Time - Word, Page [custom]	55 ns

S29PL064 Series

Part	Mounting Type	Memory Organization	Write Cycle Time - Word, Page	Access Time	Supplier Device Package	Memory Type	Memory Interface	Operating Temperature [Max]	Operating Temperature [Min]	Memory Format	Memory Size	Package / Case	Technology	Voltage - Supply [Min]	Voltage - Supply [Max]	Write Cycle Time - Word, Page [custom]	Write Cycle Time - Word, Page [custom]	Supplier Device Package [y]	Supplier Device Package [x]
Infineon Technologies S29PL064J60BAW120	Surface Mount	4M x 16	60 ns	60 ns	48-FBGA (8.15x6.15)	Non-Volatile	Parallel	85 C	-25 °C	FLASH	64 Gbit	48-VFBGA	FLASH - NOR	2.7 V	3.6 V
Infineon Technologies S29PL064J60BFID20E										FLASH	64 Gbit		FLASH - NOR
Infineon Technologies S29PL064J60BFA073	Surface Mount	4M x 16	60 ns	60 ns	48-FBGA (8.15x6.15)	Non-Volatile	CFI	85 °C	-40 °C	FLASH	64 Gbit	48-VFBGA	FLASH - NOR (SLC)	2.7 V	3.6 V
Infineon Technologies S29PL064J70BFW122	Surface Mount	4M x 16		70 ns	48-FBGA (8.15x6.15)	Non-Volatile	Parallel	85 C	-25 °C	FLASH	64 Gbit	48-VFBGA	FLASH - NOR	2.7 V	3.6 V
Infineon Technologies S29PL064J55BFI070	Surface Mount	4M x 16		55 ns	48-VFBGA	Non-Volatile	Parallel	85 °C	-40 °C	FLASH	64 Gbit	48-VFBGA	FLASH - NOR	2.7 V	3.6 V	55 ns	55 ns	6.15	8.15
Infineon Technologies S29PL064J60BFI120	Surface Mount	4M x 16	60 ns	60 ns	48-FBGA (8.15x6.15)	Non-Volatile	Parallel	85 °C	-40 °C	FLASH	64 Gbit	48-VFBGA	FLASH - NOR	2.7 V	3.6 V
Infineon Technologies S29PL064J70BFI120A	Surface Mount	4M x 16		70 ns	48-FBGA (8.15x6.15)	Non-Volatile	Parallel	85 °C	-40 °C	FLASH	64 Gbit	48-VFBGA	FLASH - NOR	2.7 V	3.6 V
Infineon Technologies S29PL064J55BFI123	Surface Mount	4M x 16		55 ns	48-FBGA (8.15x6.15)	Non-Volatile	Parallel	85 °C	-40 °C	FLASH	64 Gbit	48-VFBGA	FLASH - NOR	2.7 V	3.6 V	55 ns	55 ns
Infineon Technologies S29PL064J70BFW072	Surface Mount	4M x 16		70 ns	56-FBGA (9x7)	Non-Volatile	Parallel	85 C	-25 °C	FLASH	64 Gbit	56-VFBGA	FLASH - NOR	2.7 V	3.6 V
Infineon Technologies S29PL064J60BFI070	Surface Mount	4M x 16	60 ns	60 ns	48-VFBGA	Non-Volatile	Parallel	85 °C	-40 °C	FLASH	64 Gbit	48-VFBGA	FLASH - NOR	2.7 V	3.6 V			6.15	8.15

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 5.50
		10	$ 5.06
		25	$ 5.02

Description

General part information

S29PL064 Series

FLASH - NOR Memory IC 64Mbit Parallel 55 ns 48-VFBGA (8.15x6.15)
