DZ2S360M0L
UnknownPanasonic Industrial Automation Sales
DIODE ZENER 36V 150MW SSMINI2
Deep-Dive with AI
Search across all available documentation for this part.
DZ2S360M0L
UnknownPanasonic Industrial Automation Sales
DIODE ZENER 36V 150MW SSMINI2
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DZ2S360M0L |
|---|---|
| Current - Reverse Leakage @ Vr | 50 nA |
| Impedance (Max) (Zzt) [Max] | 250 Ohms |
| Mounting Type | Surface Mount |

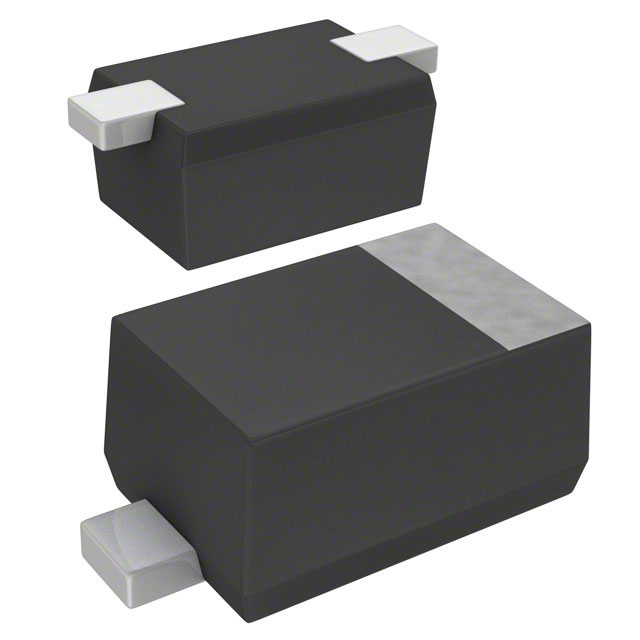

| Package / Case | SC-79, SOD-523 |
| Power - Max [Max] | 150 mW |
| Supplier Device Package | SSMini2-F5-B |
| Tolerance | 2.5 % |
| Voltage - Forward (Vf) (Max) @ If | 1 V |
| Voltage - Zener (Nom) (Vz) | 36 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 9000 | $ 0.03 | |
| 15000 | $ 0.03 | |||
| 21000 | $ 0.02 | |||
| 30000 | $ 0.02 | |||
| 75000 | $ 0.02 | |||
| 150000 | $ 0.02 | |||
| 300000 | $ 0.02 | |||
Description
General part information
DZ2S36 Series
Zener Diode 36 V 150 mW ±2.5% Surface Mount SSMini2-F5-B
Documents
Technical documentation and resources
No documents available
