RA4-1A-DC-2-AL

Active

Switch Components

SWITCH ROCKER SPST 20A 14V

Search across all available documentation for this part.

Active

Switch Components

SWITCH ROCKER SPST 20A 14V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

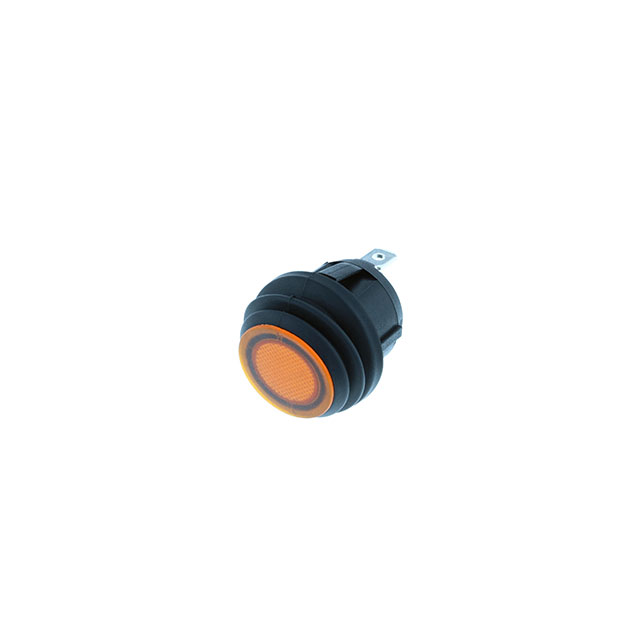

Rocker Switch SPST 20A (DC) Panel Mount, Snap-In

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	RA4-1A-DC-2-AL	RA4-1A Series

Actuator Marking	No Marking	No Marking
Actuator Type	Round - Illuminated	Round - Illuminated, Round
Approval Agency	cURus, ENEC	cURus, ENEC
Circuit	SPST	SPST
Color - Actuator/Cap	Amber	Red, Black, Amber, Green
Current Rating (Amps)	20 A	16 - 20 A
Electrical Life	6000 Cycles	6000 Cycles
Illumination Type, Color	Amber, LED	Red, LED, Amber, Green
Illumination Voltage (Nominal)	14 VDC	14 VDC
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Mechanical Life	10000 Steps	10000 Steps
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	20.2 mm	20.2 mm
Switch Function	On-Off	On-Off
Termination Style	Quick Connect - 0.187" (4.7mm)	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	-	125 V
Voltage Rating - DC	14 V	14 V

SWITCH ROCKER SPST 20A 14V

Part	Approval Agency	Illumination Type, Color	Illumination Voltage (Nominal)	Operating Temperature [Min]	Operating Temperature [Max]	Mechanical Life	Mounting Type	Termination Style	Voltage Rating - DC	Color - Actuator/Cap	Ingress Protection	Switch Function	Electrical Life	Circuit	Actuator Marking	Current Rating (Amps)	Actuator Type	Panel Cutout Dimensions [diameter]	Voltage Rating - AC
Switch Components RA4-1A-DC-2-RL	cURus, ENEC	LED, Red	14 VDC	-25 °C	85 °C	10000 Steps	Panel Mount, Snap-In	Quick Connect - 0.187" (4.7mm)	14 V	Red	IP65 - Dust Tight, Water Resistant	On-Off	6000 Cycles	SPST	No Marking	20 A	Round - Illuminated	20.2 mm
Switch Components RA4-1A-DC-2-B	cURus, ENEC			-25 °C	85 °C	10000 Steps	Panel Mount, Snap-In	Quick Connect - 0.187" (4.7mm)	14 V	Black	IP65 - Dust Tight, Water Resistant	On-Off	6000 Cycles	SPST	No Marking	16 A, 20 A	Round	20.2 mm	125 V
Switch Components RA4-1A-DC-2-AL	cURus, ENEC	Amber, LED	14 VDC	-25 °C	85 °C	10000 Steps	Panel Mount, Snap-In	Quick Connect - 0.187" (4.7mm)	14 V	Amber	IP65 - Dust Tight, Water Resistant	On-Off	6000 Cycles	SPST	No Marking	20 A	Round - Illuminated	20.2 mm
Switch Components RA4-1A-DC-2-GL	cURus, ENEC	Green, LED	14 VDC	-25 °C	85 °C	10000 Steps	Panel Mount, Snap-In	Quick Connect - 0.187" (4.7mm)	14 V	Green	IP65 - Dust Tight, Water Resistant	On-Off	6000 Cycles	SPST	No Marking	20 A	Round - Illuminated	20.2 mm
