VER18US150-JA

Obsolete

XP Power

AC/DC WALL MOUNT ADAPTER 15V 19W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

VER18US150-JA

Obsolete

XP Power

AC/DC WALL MOUNT ADAPTER 15V 19W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 15.80

Description

General part information

VER18 Series

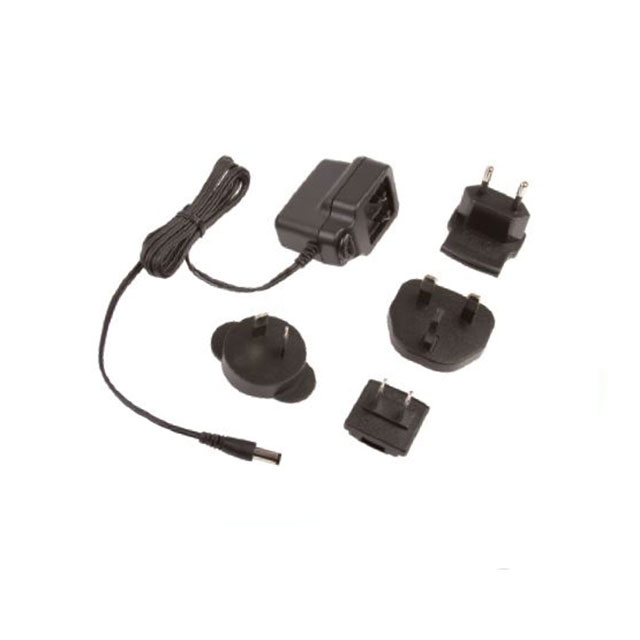

15V 19 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Included) Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VER18US150-JA	VER18 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CB	CB
Cord Length	1.5 m	1.5 m
Cord Length	59 in	59 in
Current - Output (Max) [Max]	1.25 A	1.25 - 750 A
Efficiency	Level VI	Level VI
Form	Wall Mount (Class II)	Wall Mount (Class II)
Input Connector	Multi-Blade	Multi-Blade
Input Type	Multi-Blade (Included)	Multi-Blade (Included)
No Load Power Consumption	100 mW	100 mW
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	0 °C	0 °C
Output Connector	Barrel Plug	Barrel Plug
Output Connector [diameter]	2.1 mm, 5.5 mm	2.1 - 5.5 mm
Output Connector [z]	12 mm	12 mm
Polarization	Positive Center	Positive Center
Power (Watts)	19 W	18 - 19 W
Region Utilized	International	International
Size / Dimension [x]	3.54 in	3.54 in
Size / Dimension [x]	90 mm	90 mm
Size / Dimension [y]	43 mm	43 mm
Size / Dimension [y]	1.69 in	1.69 in
Size / Dimension [z]	1.68 "	1.68 "
Size / Dimension [z]	42.7 mm	42.7 mm
Standard Number	62368-1	62368-1
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Output	15 VDC	9 - 24 VDC
Weight	0.177 lb	0.177 lb
Weight	80.29 g	80.29 g

VER18 Series

AC/DC WALL MOUNT ADAPTER 15V 19W

Part	Current - Output (Max) [Max]	Input Connector	Input Type	Operating Temperature [Max]	Weight	Weight	Region Utilized	Standard Number	Cord Length	Cord Length	Form	Applications	Approval Agency	Efficiency	No Load Power Consumption	Voltage - Output	Power (Watts)	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Polarization	Voltage - Input [Min]	Voltage - Input [Max]	Output Connector	Output Connector [diameter]	Output Connector [z]
XP Power VER18US150-JA	1.25 A	Multi-Blade	Multi-Blade (Included)	60 °C	0.177 lb	80.29 g	International	62368-1	1.5 m	59 in	Wall Mount (Class II)	ITE (Commercial)	CB	Level VI	100 mW	15 VDC	19 W	43 mm	1.68 "	3.54 in	42.7 mm	90 mm	1.69 in	Positive Center	90 VAC	264 VAC	Barrel Plug	2.1 mm, 5.5 mm	12 mm
XP Power VER18US120-JA	1.5 A	Multi-Blade	Multi-Blade (Included)	60 °C	0.177 lb	80.29 g	International	62368-1	1.5 m	59 in	Wall Mount (Class II)	ITE (Commercial)	CB	Level VI	100 mW	12 V	18 W	43 mm	1.68 "	3.54 in	42.7 mm	90 mm	1.69 in	Positive Center	90 VAC	264 VAC	Barrel Plug	2.1 mm, 5.5 mm	12 mm
XP Power VER18US240-JA	750 mA	Multi-Blade	Multi-Blade (Included)	60 °C	0.177 lb	80.29 g	International	62368-1	1.5 m	59 in	Wall Mount (Class II)	ITE (Commercial)	CB	Level VI	100 mW	24 V	18 W	43 mm	1.68 "	3.54 in	42.7 mm	90 mm	1.69 in	Positive Center	90 VAC	264 VAC	Barrel Plug	2.1 mm, 5.5 mm	12 mm
XP Power VER18US090-JA	2 A	Multi-Blade	Multi-Blade (Included)	60 °C	0.177 lb	80.29 g	International	62368-1	1.5 m	59 in	Wall Mount (Class II)	ITE (Commercial)	CB	Level VI	100 mW	9 V	18 W	43 mm	1.68 "	3.54 in	42.7 mm	90 mm	1.69 in	Positive Center	90 VAC	264 VAC	Barrel Plug	2.1 mm, 5.5 mm	12 mm
