L177SDE09SOL2

Active

Amphenol ICC (Commercial Products)

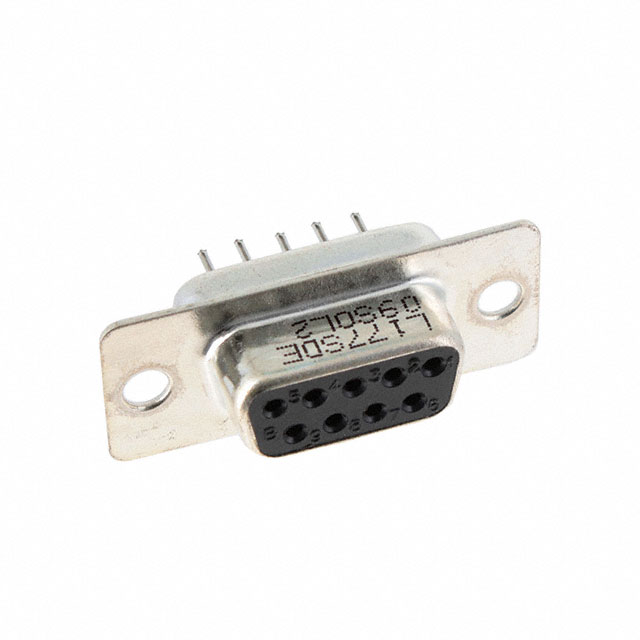

CONN D-SUB RCPT 9POS VERT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L177SDE09SOL2

Active

Amphenol ICC (Commercial Products)

CONN D-SUB RCPT 9POS VERT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L177SDE09SOL2

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Form	Stamped
Contact Material	Phosphor Bronze
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic, Glass Filled
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder
Voltage Rating	250 VDC

L177SDE09 Series

Part	Connector Style	Material Flammability Rating	Contact Finish Thickness	Contact Finish Thickness	Color	Number of Rows	Backset Spacing	Backset Spacing	Contact Form	Contact Finish	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Connector Type	Mounting Type	Number of Positions	Current Rating (Amps)	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Voltage Rating	Contact Type	Flange Feature	Contact Material
Amphenol ICC (Commercial Products) L177SDE09SA4CH4R	D-Sub	UL94 V-0	15 µin	0.38 µm	Black	2	8.08 mm	0.318 "	Stamped	Gold	Solder	-55 °C	125 °C	Thermoplastic Glass Filled	Receptacle Female Sockets	Through Hole Right Angle	9	3 A	DE E	1	250 VDC	Signal	4-40 Board Side	Phosphor Bronze
Amphenol ICC (Commercial Products) L177SDE09SOL2	D-Sub	UL94 V-0	15 µin	0.38 µm	Black	2			Stamped	Gold	Solder	-55 °C	125 °C	Thermoplastic Glass Filled	Receptacle Female Sockets	Through Hole	9	3 A	DE E	1	250 VDC	Signal	Housing/Shell (Unthreaded)	Phosphor Bronze
Amphenol ICC (Commercial Products) L177SDE09S1ACH3F	D-Sub	UL94 V-0	15 µin	0.38 µm	Black	2	10.3 mm	0.406 in	Stamped	Gold	Solder	-55 °C	125 °C	Thermoplastic Glass Filled	Receptacle Female Sockets	Through Hole Right Angle	9	3 A	DE E	1	250 VDC	Signal	Female Screwlock (M3) Mating Side	Phosphor Bronze
Amphenol ICC (Commercial Products) L177SDE09S1ACH4R	D-Sub	UL94 V-0	15 µin	0.38 µm	Black	2	10.3 mm	0.406 in	Stamped	Gold	Solder	-55 °C	125 °C	Thermoplastic Glass Filled	Receptacle Female Sockets	Through Hole Right Angle	9	3 A	DE E	1	250 VDC	Signal	4-40 Board Side	Phosphor Bronze
Amphenol ICC (Commercial Products) L177SDE09SR702	D-Sub	UL94 V-0	15 µin	0.38 µm	Black	2			Stamped	Gold		-55 °C	125 °C	Thermoplastic Glass Filled	Receptacle Female Sockets	Free Hanging (In-Line)	9	3 A	DE E	1	250 VDC	Signal	Housing/Shell (Unthreaded)	Phosphor Bronze
Amphenol ICC (Commercial Products) L177SDE09SOL2G	D-Sub	UL94 V-0	15 µin	0.38 µm	Black	2			Stamped	Gold	Solder	-55 °C	125 °C	Thermoplastic Glass Filled	Receptacle Female Sockets	Through Hole	9	3 A	DE E	1	250 VDC	Signal	Housing/Shell (Unthreaded)	Phosphor Bronze

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.37
		10	$ 1.20
		25	$ 1.14
		50	$ 1.12
		100	$ 1.07
		250	$ 0.97
		450	$ 0.89
		950	$ 0.76
		2400	$ 0.71

Description

General part information

L177SDE09 Series

9 Position D-Sub Receptacle, Female Sockets Connector
