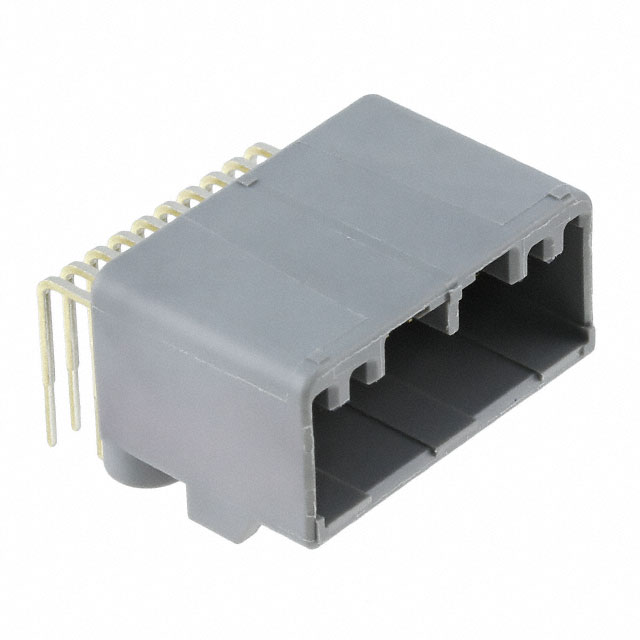

Specification	MX34020NF1

Applications	Automotive
Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Length - Mating	0.303 in
Contact Length - Post	0.126 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating	3 A
Fastening Type	Locking Ramp
Features	Board Lock
Insulation Color	Gray
Insulation Height	0.626 in
Insulation Material	Syndiotactic Polystyrene (SPS), Glass Filled
Mounting Type	Through Hole, Right Angle
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Pitch - Mating	0.087 in
Row Spacing - Mating	0.118 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder

MX34020N Series

Part	Contact Shape	Style	Number of Positions	Insulation Color	Contact Finish - Post	Features	Termination	Insulation Material	Connector Type	Insulation Height	Contact Length - Post	Contact Finish - Mating	Contact Length - Mating	Current Rating	Number of Rows	Pitch - Mating	Operating Temperature (Min)	Operating Temperature (Max)	Fastening Type	Shrouding	Number of Positions Loaded	Mounting Type	Contact Material	Row Spacing - Mating	Contact Type	Applications
JAE Electronics MX34020NF1	Square	Board Cable/Wire	20	Gray	Tin	Board Lock	Solder	Glass Filled Syndiotactic Polystyrene (SPS)	Header	0.626 in	0.126 in	Tin	0.303 in	3 A	2	0.087 in	-40 °C	85 °C	Locking Ramp	Shrouded - 4 Wall	All	Right Angle Through Hole	Brass	0.118 in	Male Pin	Automotive
