YB25SKW01-5C-JB
ActiveNKK Switches

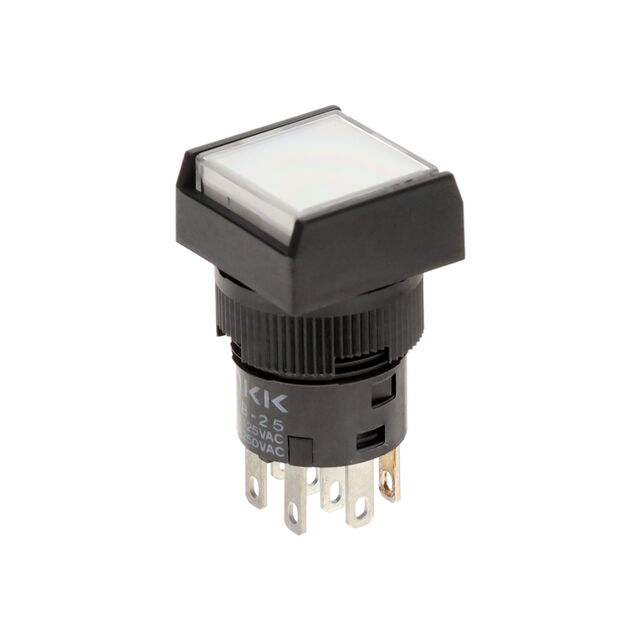

SWITCH PUSHBUTTON DPDT 3A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
YB25SKW01-5C-JB
ActiveNKK Switches
SWITCH PUSHBUTTON DPDT 3A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | YB25SKW01-5C-JB |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Button, Square |
| Circuit | DPDT |
| Color - Actuator/Cap | Clear |
| Current Rating (Amps) | 3 A |
| Electrical Life | 100000 Cycles |
| Features | Voltage Reduction Lighting |
| Illumination Type, Color | Red, LED |
| Illumination Voltage (Nominal) | 1.9 VDC |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 16 mm |
| Switch Function | On-Mom |
| Termination Style | 0.11 in |
| Termination Style | Quick Connect, Solder |
| Termination Style | 2.8 mm |
| Type | Illuminated, Standard |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
YB25SK Series
| Part | Actuator Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - DC | Mounting Type | Illumination Type, Color | Switch Function | Voltage Rating - AC | Circuit | Features | Type | Panel Cutout Dimensions [diameter] | Illumination Voltage (Nominal) | Actuator Marking | Color - Actuator/Cap | Current Rating (Amps) | Termination Style | Termination Style | Termination Style | Mechanical Life | Electrical Life | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NKK Switches | Button Square | 50 °C | -25 °C | 30 V | Panel Mount Front | Amber LED | On-Mom | 125 V | DPDT | Voltage Reduction Lighting | Illuminated Standard | 16 mm | 5 VDC | No Marking | Clear | 3 A | 0.11 in | Quick Connect Solder | 2.8 mm | 1000000 Cycles | 100000 Cycles | |
NKK Switches | Plunger for Cap | 70 °C | -25 °C | 28 V | Panel Mount Front | On-Mom | 28 V | SPDT | Tactile Feedback | Standard | 16 mm | No Marking | 0.4 VA | 0.11 in | Quick Connect Solder | 2.8 mm | 1000000 Cycles | 100000 Cycles | ||||
NKK Switches | Button Square | 50 °C | -25 °C | 30 V | Panel Mount Front | Green/Red LED | On-Mom | 125 V | DPDT | Voltage Reduction Lighting | Illuminated Standard | 16 mm | 24 V | No Marking | Clear | 3 A | 0.11 in | Quick Connect Solder | 2.8 mm | 1000000 Cycles | 100000 Cycles | |
NKK Switches | Button Square | 50 °C | -25 °C | 28 V | Panel Mount Front | Green/Red LED | On-Mom | 28 V | DPDT | Voltage Reduction Lighting | Illuminated Standard | 16 mm | 12 VDC | No Marking | Clear | 0.4 VA | 0.11 in | Quick Connect Solder | 2.8 mm | 1000000 Cycles | 100000 Cycles | |
NKK Switches | Plunger for Cap | 70 °C | -25 °C | 30 V | Panel Mount Front | On-Mom | 125 V | DPDT | Voltage Reduction Lighting | Standard | 16 mm | No Marking | 3 A | 0.11 in | Quick Connect Solder | 2.8 mm | 1000000 Cycles | 100000 Cycles | ||||
NKK Switches | Button Square | 70 °C | -25 °C | 30 V | Panel Mount Front | On-Mom | 125 V | DPDT | Voltage Reduction Lighting | Standard | 16 mm | No Marking | White | 3 A | 0.11 in | Quick Connect Solder | 2.8 mm | 1000000 Cycles | 100000 Cycles | |||
NKK Switches | Button Square | 50 °C | -25 °C | 30 V | Panel Mount Front | Amber LED | On-Mom | 125 V | DPDT | Voltage Reduction Lighting | Illuminated Standard | 16 mm | 2 VDC | No Marking | Clear | 3 A | 0.11 in | Quick Connect Solder | 2.8 mm | 1000000 Cycles | 100000 Cycles | |
NKK Switches | Plunger for Cap | 70 °C | -25 °C | 30 V | Panel Mount Front | On-On | 125 V | DPDT | Voltage Reduction Lighting | Standard | 16 mm | No Marking | 3 A | 0.11 in | Quick Connect Solder | 2.8 mm | 200000 Cycles | 100000 Cycles | ||||
NKK Switches | Plunger for Cap | 70 °C | -25 °C | 30 V | Panel Mount Front | On-Mom | 125 V | SPDT | Tactile Feedback | Standard | 16 mm | No Marking | 3 A | 0.11 in | Quick Connect Solder | 2.8 mm | 1000000 Cycles | 100000 Cycles | IP65 - Dust Tight Water Resistant | |||
NKK Switches | Button Square | 50 °C | -25 °C | 30 V | Panel Mount Front | LED Red | On-Mom | 125 V | DPDT | Voltage Reduction Lighting | Illuminated Standard | 16 mm | 1.9 VDC | No Marking | Clear | 3 A | 0.11 in | Quick Connect Solder | 2.8 mm | 1000000 Cycles | 100000 Cycles |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
YB25SK Series
Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Front
