Q80SV15010PRFS

Active

Delta Electronics

14.4-170VIN, 15VOUT, 150W, EN501

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

Q80SV15010PRFS

Active

Delta Electronics

14.4-170VIN, 15VOUT, 150W, EN501

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 123.41
		5	$ 122.43
		10	$ 121.45
		25	$ 113.62
		45	$ 109.70
		90	$ 104.21

Description

General part information

Q80SV Series

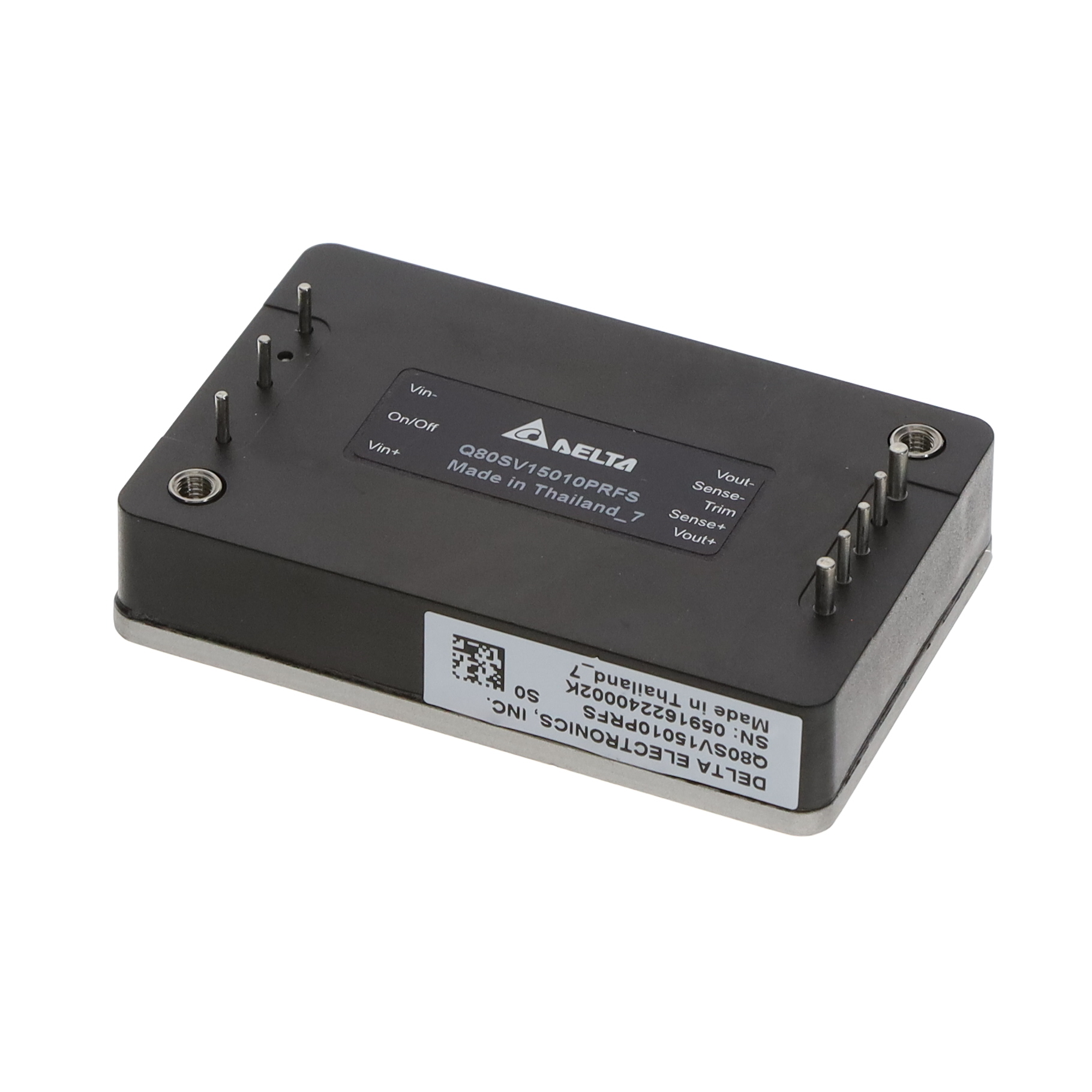

Isolated Module DC DC Converter 1 Output 15V 10A 14.4V - 170V Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	Q80SV15010PRFS	Q80SV Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	UL, EN	UL, EN
Control Features	Active High, Enable	Active High, Enable
Current - Output (Max)	-	2.8 A
Current - Output (Max) [Max]	10 A	6.3 - 30 A
Efficiency	-	88.3 - 90 %
Features	Remote On/Off, Adjustable Output, Remote Sense	Remote On/Off, Adjustable Output, Remote Sense
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Quarter Brick	Quarter Brick
Power (Watts)	150 W	150 - 151 W
Size / Dimension [x]	60.6 mm	60.6 mm
Size / Dimension [x]	2.39 "	2.39 "
Size / Dimension [y]	1.54 "	1.54 "
Size / Dimension [y]	39 mm	39 mm
Size / Dimension [z]	0.5 in	0.5 in
Size / Dimension [z]	12.7 mm	12.7 mm
Standard Number	60950-1, 62368-1	60950-1, 62368-1
Supplier Device Package	Quarter Brick	Quarter Brick
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	170 V	170 V
Voltage - Input (Min) [Min]	14.4 V	14.4 V
Voltage - Isolation	4.242 kV	4.242 kV
Voltage - Output 1	15 V	5 - 54 V

Q80SV Series

14.4-170VIN, 15VOUT, 150W, EN501

Part	Features	Mounting Type	Number of Outputs	Applications	Supplier Device Package	Voltage - Output 1	Package / Case	Power (Watts)	Voltage - Input (Min) [Min]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Voltage - Isolation	Control Features	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Type	Current - Output (Max) [Max]	Standard Number	Efficiency	Current - Output (Max)
Delta Electronics Q80SV15010PRFS	Adjustable Output, Remote On/Off, Remote Sense	Through Hole	1	ITE (Commercial)	Quarter Brick	15 V	Quarter Brick	150 W	14.4 V	1.54 "	39 mm	60.6 mm	2.39 "	0.5 in	12.7 mm	4.242 kV	Active High, Enable	170 V	85 °C	-40 °C	EN, UL	Isolated Module	10 A	60950-1, 62368-1
Delta Electronics Q80SV24006PRFS	Adjustable Output, Remote On/Off, Remote Sense	Through Hole	1	ITE (Commercial)	Quarter Brick	24 V	Quarter Brick	151 W	14.4 V	1.54 "	39 mm	60.6 mm	2.39 "	0.5 in	12.7 mm	4.242 kV	Active High, Enable	170 V	85 °C	-40 °C	EN, UL	Isolated Module	6.3 A	60950-1, 62368-1	89.3 %
Delta Electronics Q80SV12013PRFS	Adjustable Output, Remote On/Off, Remote Sense	Through Hole	1	ITE (Commercial)	Quarter Brick	12 V	Quarter Brick	150 W	14.4 V	1.54 "	39 mm	60.6 mm	2.39 "	0.5 in	12.7 mm	4.242 kV	Active High, Enable	170 V	85 °C	-40 °C	EN, UL	Isolated Module	12.5 A	60950-1, 62368-1	90 %
Delta Electronics Q80SV05030PRFS	Adjustable Output, Remote On/Off, Remote Sense	Through Hole	1	ITE (Commercial)	Quarter Brick	5 V	Quarter Brick	150 W	14.4 V	1.54 "	39 mm	60.6 mm	2.39 "	0.5 in	12.7 mm	4.242 kV	Active High, Enable	170 V	85 °C	-40 °C	EN, UL	Isolated Module	30 A	60950-1, 62368-1	88.3 %
Delta Electronics Q80SV54003PRFS	Adjustable Output, Remote On/Off, Remote Sense	Through Hole	1	ITE (Commercial)	Quarter Brick	54 V	Quarter Brick	151 W	14.4 V	1.54 "	39 mm	60.6 mm	2.39 "	0.5 in	12.7 mm	4.242 kV	Active High, Enable	170 V	85 °C	-40 °C	EN, UL	Isolated Module		60950-1, 62368-1		2.8 A
