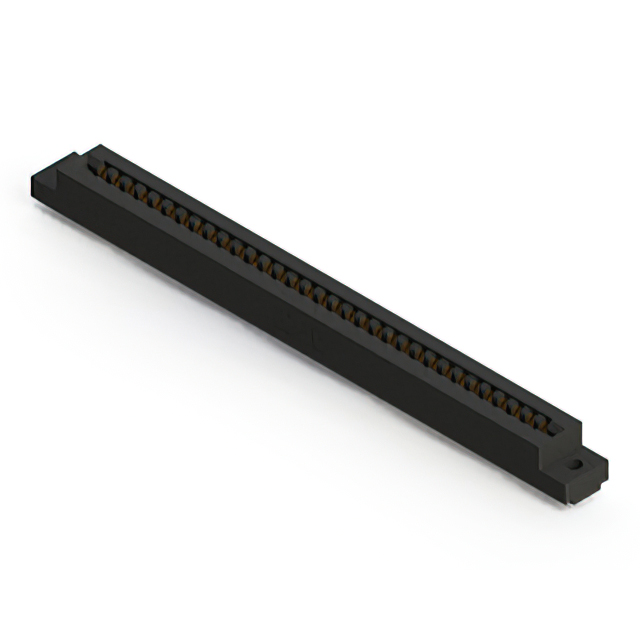

857-033-553-102

Active

EDAC Inc.

CONN EDGE DUAL FMALE 66POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

857-033-553-102

Active

EDAC Inc.

CONN EDGE DUAL FMALE 66POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	857-033-553-102

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole, Right Angle
Number of Positions	66
Number of Positions/Bay/Row [custom]	33
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	1

857-033 Series

...

Part	Flange Feature	Operating Temperature [Max]	Operating Temperature [Min]	Color	Gender	Termination	Number of Positions/Bay/Row [custom]	Mounting Type	Number of Positions	Contact Material	Card Type	Number of Rows	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Read Out	Contact Type	Termination Rows	Material - Insulation	Contact Finish	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Flange Feature
EDAC Inc. 857-033-541-107	Flush Mount M3 Threaded Insert Top Opening	125 °C	-40 °C	Black	Female	Wire Wrap	33	Through Hole	66	Copper Alloy	Non Specified - Dual Edge	2	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	10 Áin	0.25 Ám	Dual	Semi Bellows	1	Polyphenylene Sulfide (PPS)	Gold
EDAC Inc. 857-033-558-102	Flush Mount Top Opening Unthreaded	125 °C	-40 °C	Black	Female	Solder	33	Through Hole Right Angle	33	Copper Alloy	Non Specified - Single Edge	1	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	10 Áin	0.25 Ám	Single	Semi Bellows	1	Polyphenylene Sulfide (PPS)	Gold	3.25 mm	0.128 "
EDAC Inc. 857-033-501-103	Floating Bobbin Flush Mount	125 °C	-40 °C	Black	Female	Solder Eyelet(s)	33	Through Hole	66	Copper Alloy	Non Specified - Dual Edge	2	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	10 Áin	0.25 Ám	Dual	Semi Bellows	1	Polyphenylene Sulfide (PPS)	Gold	2.95 mm	0.116 in
EDAC Inc. 857-033-453-112	Side Mount Opening Unthreaded	125 °C	-40 °C	Black	Female	Solder	33	Through Hole Right Angle	66	Copper Alloy	Non Specified - Dual Edge	2	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm			Dual	Semi Bellows	1	Polyphenylene Sulfide (PPS)	Tin			3.25 mm	0.128 in
EDAC Inc. 857-033-527-103	Floating Bobbin Flush Mount	125 °C	-40 °C	Black	Female	Solder	33	Through Hole	33	Copper Alloy	Non Specified - Single Edge	1	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	10 Áin	0.25 Ám	Single	Semi Bellows	1	Polyphenylene Sulfide (PPS)	Gold	2.95 mm	0.116 in
EDAC Inc. 857-033-554-107	Flush Mount M3 Threaded Insert Top Opening	125 °C	-40 °C	Black	Female	Solder	33	Through Hole Right Angle	66	Copper Alloy	Non Specified - Dual Edge	2	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	10 Áin	0.25 Ám	Dual	Semi Bellows	1	Polyphenylene Sulfide (PPS)	Gold
EDAC Inc. 857-033-553-108	4-40 Flush Mount Threaded Insert Top Opening	125 °C	-40 °C	Black	Female	Solder	33	Through Hole Right Angle	66	Copper Alloy	Non Specified - Dual Edge	2	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	10 Áin	0.25 Ám	Dual	Semi Bellows	1	Polyphenylene Sulfide (PPS)	Gold
EDAC Inc. 857-033-459-108	4-40 Flush Mount Threaded Insert Top Opening	125 °C	-40 °C	Black	Female	Solder	33	Through Hole Right Angle	33	Copper Alloy	Non Specified - Single Edge	1	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm			Single	Semi Bellows	1	Polyphenylene Sulfide (PPS)	Tin
EDAC Inc. 857-033-553-102	Flush Mount Top Opening Unthreaded	125 °C	-40 °C	Black	Female	Solder	33	Through Hole Right Angle	66	Copper Alloy	Non Specified - Dual Edge	2	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	10 Áin	0.25 Ám	Dual	Semi Bellows	1	Polyphenylene Sulfide (PPS)	Gold	3.25 mm	0.128 "
EDAC Inc. 857-033-505-108	4-40 Flush Mount Threaded Insert Top Opening	125 °C	-40 °C	Black	Female	Solder Eyelet(s)	33	Through Hole	33	Copper Alloy	Non Specified - Single Edge	1	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	10 Áin	0.25 Ám	Single	Semi Bellows	1	Polyphenylene Sulfide (PPS)	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 215.80
Newark	Each	1	$ 289.91
		1	$ 289.91
		100	$ 198.55
		100	$ 198.55
		250	$ 156.14
		250	$ 156.14
		500	$ 146.73
		500	$ 146.73
		1000	$ 123.00
		1000	$ 123.00

Description

General part information

857-033 Series

66 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black

Documents

Technical documentation and resources
