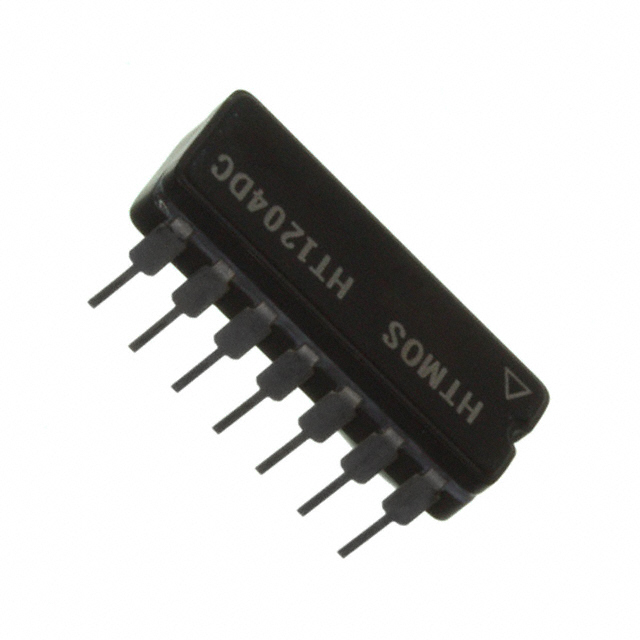

HT1204DC

Obsolete

Honeywell Aerospace

IC ANLG SW QUAD HI TEMP 14DIP

Search across all available documentation for this part.

Obsolete

Honeywell Aerospace

IC ANLG SW QUAD HI TEMP 14DIP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

High Temperature Switch IC 4 Channel 14-CDIP

Technical documentation and resources

Specification	HT1204DC	HT1204 Series

Applications	High Temperature	High Temperature
Mounting Type	Through Hole	Through Hole
Multiplexer/Demultiplexer Circuit	1:1	1:1
Number of Channels	4	4
On-State Resistance (Max) [Max]	100 Ohms	100 Ohms
Operating Temperature [Max]	225 °C	225 °C
Operating Temperature [Min]	-55 C	-55 C
Package / Case	14-DIP	14-DIP, 14-CDIP
Package / Case [x]	0.3 "	0.3 "
Package / Case [y]	7.62 mm	7.62 mm
Supplier Device Package	14-CDIP	14-CDIP, 14-CerDIP
Switch Circuit	SPST	SPST
Voltage - Supply, Single (V+) [Max]	11 V	11 V
Voltage - Supply, Single (V+) [Min]	5 V	5 V

Part	Switch Circuit	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Multiplexer/Demultiplexer Circuit	Voltage - Supply, Single (V+) [Max]	Voltage - Supply, Single (V+) [Min]	Number of Channels	Package / Case	Package / Case [y]	Package / Case [x]	On-State Resistance (Max) [Max]	Supplier Device Package
Honeywell Aerospace HT1204DC	SPST	High Temperature	-55 C	225 °C	Through Hole	1:1	11 V	5 V	4	14-DIP	7.62 mm	0.3 "	100 Ohms	14-CDIP
Honeywell Aerospace HT1204 DC	SPST	High Temperature	-55 C	225 °C	Through Hole	1:1	11 V	5 V	4	14-CDIP			100 Ohms	14-CerDIP
