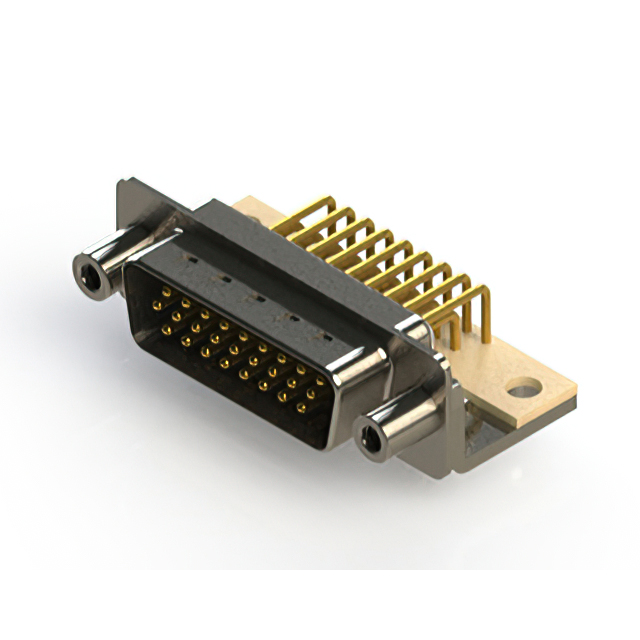

633-M26-663-BT6

Active

EDAC Inc.

26P MALE RIGHT-ANGLE 3 5A -55℃~+125℃ PUSH-PULL D-SUB / VGA CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

633-M26-663-BT6

Active

EDAC Inc.

26P MALE RIGHT-ANGLE 3 5A -55℃~+125℃ PUSH-PULL D-SUB / VGA CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	633-M26-663-BT6

Backset Spacing	8.89 mm
Backset Spacing	0.35 in
Color	Black
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA6T), Nylon 6T
Features	Grounding Indents, Shielded
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	26
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	2
Shell Size, Connector Layout	(DA, A) High Density
Termination	Solder

633-M26 Series

Part	Number of Positions	Dielectric Material	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Features	Color	Shell Size, Connector Layout	Shell Size, Connector Layout	Connector Type	Flange Feature	Contact Material	Mounting Type	Contact Finish	Material Flammability Rating	Current Rating (Amps)	Termination	Backset Spacing	Backset Spacing	Number of Rows	Connector Style	Shell Material, Finish	Contact Finish Thickness
EDAC Inc. 633-M26-663-BT6	26	Polyamide (PA6T) Nylon 6T	Signal	-55 °C	125 °C	0.76 Ám	30 Áin	Grounding Indents Shielded	Black	2	(DA A) High Density	Male Pins Plug	4-40 Board Side	Copper Alloy	Board Edge Right Angle Through Hole	Gold	UL94 V-0	5 A	Solder	8.89 mm	0.35 in	3	D-Sub High Density
EDAC Inc. 633-M26-363-BN4	26	Polyamide (PA6T) Nylon 6T	Signal	-55 °C	125 °C	0.38 µm	15 µin	Grounding Indents Shielded	Black	2	(DA A) High Density	Male Pins Plug	Housing/Shell (4-40)	Copper Alloy	Board Edge Right Angle Through Hole	Gold	UL94 V-0	5 A	Solder	8.89 mm	0.35 in	3	D-Sub High Density	Nickel Plated Steel
EDAC Inc. 633-M26-263-WN5	26	Polyamide (PA6T) Nylon 6T	Signal	-55 °C	125 °C			Grounding Indents Shielded	White	2	(DA A) High Density	Male Pins Plug	4-40	Copper Alloy	Board Edge Right Angle Through Hole	Gold	UL94 V-0	5 A	Solder	8.89 mm	0.35 in	3	D-Sub High Density	Nickel Plated Steel	Flash
EDAC Inc. 633-M26-663-BN1	26	Polyamide (PA6T) Nylon 6T	Signal	-55 °C	125 °C	0.76 Ám	30 Áin	Grounding Indents Shielded	Black	2	(DA A) High Density	Male Pins Plug	Housing/Shell (Unthreaded)	Copper Alloy	Board Edge Right Angle Through Hole	Gold	UL94 V-0	5 A	Solder	8.89 mm	0.35 in	3	D-Sub High Density	Nickel Plated Steel
EDAC Inc. 633-M26-263-WT2	26	Polyamide (PA6T) Nylon 6T	Signal	-55 °C	125 °C			Grounding Indents Shielded	White	2	(DA A) High Density	Male Pins Plug	Housing/Shell (4-40)	Copper Alloy	Board Edge Right Angle Through Hole	Gold	UL94 V-0	5 A	Solder	8.89 mm	0.35 in	3	D-Sub High Density		Flash
EDAC Inc. 633-M26-263-BT2	26	Polyamide (PA6T) Nylon 6T	Signal	-55 °C	125 °C			Grounding Indents Shielded	Black	2	(DA A) High Density	Male Pins Plug	Housing/Shell (4-40)	Copper Alloy	Board Edge Right Angle Through Hole	Gold	UL94 V-0	5 A	Solder	8.89 mm	0.35 in	3	D-Sub High Density		Flash
EDAC Inc. 633-M26-263-WN2	26	Polyamide (PA6T) Nylon 6T	Signal	-55 °C	125 °C			Grounding Indents Shielded	White	2	(DA A) High Density	Male Pins Plug	Housing/Shell (4-40)	Copper Alloy	Board Edge Right Angle Through Hole	Gold	UL94 V-0	5 A	Solder	8.89 mm	0.35 in	3	D-Sub High Density	Nickel Plated Steel	Flash
EDAC Inc. 633-M26-663-WT6	26	Polyamide (PA6T) Nylon 6T	Signal	-55 °C	125 °C	0.76 Ám	30 Áin	Grounding Indents Shielded	White	2	(DA A) High Density	Male Pins Plug	4-40 Board Side	Copper Alloy	Board Edge Right Angle Through Hole	Gold	UL94 V-0	5 A	Solder	8.89 mm	0.35 in	3	D-Sub High Density
EDAC Inc. 633-M26-263-BT5	26	Polyamide (PA6T) Nylon 6T	Signal	-55 °C	125 °C			Grounding Indents Shielded	Black	2	(DA A) High Density	Male Pins Plug	4-40	Copper Alloy	Board Edge Right Angle Through Hole	Gold	UL94 V-0	5 A	Solder	8.89 mm	0.35 in	3	D-Sub High Density		Flash
EDAC Inc. 633-M26-363-WT4	26	Polyamide (PA6T) Nylon 6T	Signal	-55 °C	125 °C	0.38 µm	15 µin	Grounding Indents Shielded	White	2	(DA A) High Density	Male Pins Plug	Housing/Shell (4-40)	Copper Alloy	Board Edge Right Angle Through Hole	Gold	UL94 V-0	5 A	Solder	8.89 mm	0.35 in	3	D-Sub High Density

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	500	$ 13.68
LCSC	Piece	1	$ 32.36
		200	$ 12.52
		500	$ 12.08
		1000	$ 11.87
Newark	Each	1	$ 13.59
		750	$ 13.09
		1000	$ 12.62
		2500	$ 12.19
		5000	$ 11.78

Description

General part information

633-M26 Series

26 Position D-Sub, High Density Plug, Male Pins Connector
