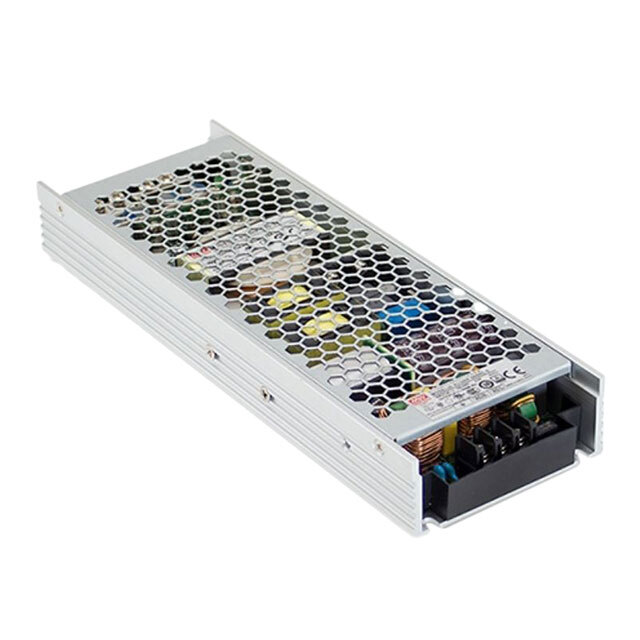

UHP-500-12
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 12V 500W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UHP-500-12
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 12V 500W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UHP-500-12 |
|---|---|
| Applications | Household Appliances, ITE (Commercial) |
| Approval Agency | cURus, TUV, EAC, CE, CB, CCC |
| Current - Output 1 | 41.7 A |
| Efficiency | 94 % |
| Features | PFC, Adjustable Output, Universal Input |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Power (Watts) | 500 W |
| Size / Dimension [x] | 232 mm |
| Size / Dimension [x] | 9.13 in |
| Size / Dimension [y] | 81 mm |
| Size / Dimension [y] | 3.19 in |
| Size / Dimension [z] | 1.22 in |
| Size / Dimension [z] | 31 mm |
| Type | Enclosed |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 127 VDC, 90 VAC |
| Voltage - Isolation | 3750 V |
| Voltage - Output 1 | 12 V |
UHP-500 Series
| Part | Voltage - Input [Min] | Voltage - Input [Max] | Efficiency | Current - Output 1 | Power (Watts) | Voltage - Output 1 | Applications | Mounting Type | Approval Agency | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Features | Type | Number of Outputs | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Isolation | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MEAN WELL USA Inc. | 90 VAC 127 VDC | 264 VAC 370 VDC | 95 % | 13.9 A | 500 W | 36 V | Household Appliances ITE (Commercial) | Chassis Mount | CB CCC CE cURus EAC TUV | 232 mm | 9.13 in | 81 mm | 3.19 in | 1.22 in | 31 mm | Adjustable Output PFC Universal Input | Enclosed | 1 | -20 °C | 70 °C | 3750 V | |
MEAN WELL USA Inc. | 90 VAC 127 VDC | 264 VAC 370 VDC | 94 % | 41.7 A | 500 W | 12 V | Household Appliances ITE (Commercial) | Chassis Mount | CB CCC CE cURus EAC TUV | 232 mm | 9.13 in | 81 mm | 3.19 in | 1.22 in | 31 mm | Adjustable Output PFC Universal Input | Enclosed | 1 | -20 °C | 70 °C | 3750 V | |
MEAN WELL USA Inc. | 90 VAC 127 VDC | 264 VAC 370 VDC | 95 % | 10.45 A | 502 W | 48 V | Household Appliances ITE (Commercial) | Chassis Mount | CB CCC CE cURus EAC TUV | 232 mm | 9.13 in | 81 mm | 3.19 in | 1.22 in | 31 mm | Adjustable Output PFC Universal Input | Enclosed | 1 | -20 °C | 70 °C | 3750 V | |
MEAN WELL USA Inc. | 90 VAC 127 VDC | 264 VAC 370 VDC | 94 % | 41.7 A | 500 W | 12 V | Household Appliances ITE (Commercial) | Chassis Mount | CB CCC CE cURus EAC TUV | 232 mm | 9.13 in | 81 mm | 3.19 in | 1.22 in | 31 mm | Adjustable Output PFC Universal Input | Enclosed | 1 | -20 °C | 70 °C | 3750 V | |
MEAN WELL USA Inc. | 90 VAC 127 VDC | 264 VAC 370 VDC | 95 % | 8.9 A | 490 W | 55 V | Household Appliances ITE (Commercial) | Chassis Mount | CB CCC CE cURus EAC TUV | 232 mm | 9.13 in | 81 mm | 3.19 in | 1.22 in | 31 mm | Adjustable Output PFC Universal Input | Enclosed | 1 | -30 °C | 70 °C | 3750 V | 62368-1 |
MEAN WELL USA Inc. | 90 VAC 127 VDC | 264 VAC 370 VDC | 95 % | 13.9 A | 500 W | 36 V | Household Appliances ITE (Commercial) | Chassis Mount | CB CCC CE cURus EAC TUV | 232 mm | 9.13 in | 81 mm | 3.19 in | 1.22 in | 31 mm | Adjustable Output PFC Universal Input | Enclosed | 1 | -20 °C | 70 °C | 3750 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 99.95 | |
| 5 | $ 94.16 | |||
| 10 | $ 91.77 | |||
| 25 | $ 88.71 | |||
Description
General part information
UHP-500 Series
Enclosed AC DC Converters 1 Output 12V 90 ~ 264 VAC, 127 ~ 370 VDC Input
