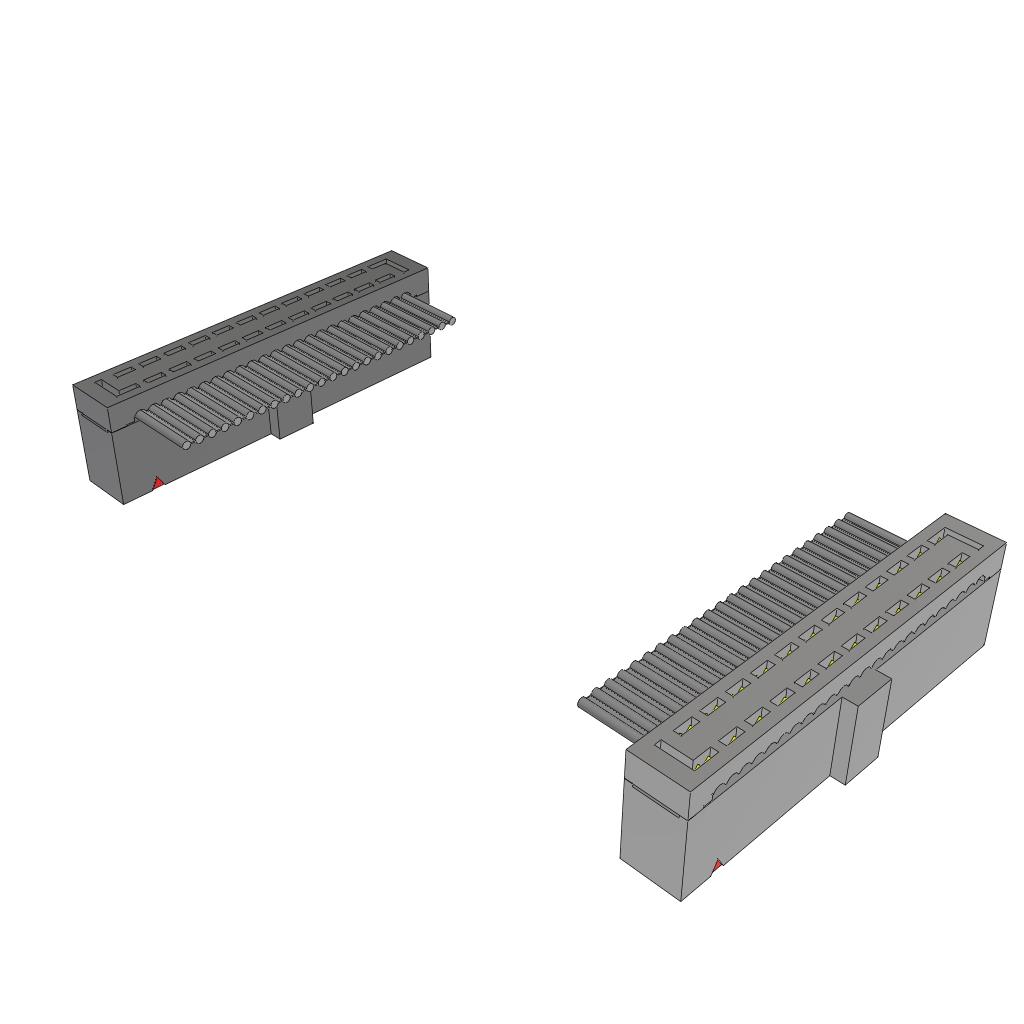

HCSD-12-D-17.00-01-N-G
ActiveSamtec Inc.
.100 C.L. MOLD TO POS. DOUBLE RO
Deep-Dive with AI
Search across all available documentation for this part.
HCSD-12-D-17.00-01-N-G
ActiveSamtec Inc.
.100 C.L. MOLD TO POS. DOUBLE RO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HCSD-12-D-17.00-01-N-G |
|---|---|
| Cable Termination | IDC |
| Connector Type | Socket to Socket |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Features | Polarizing Key |
| Length [x] | 432 mm |
| Length [x] | 1.42 ft |
| Number of Positions | 24 |
| Number of Rows | 2 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.1 in |
| Pitch - Connector | 2.54 mm |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 27.86 | |
| 10 | $ 21.50 | |||
| 25 | $ 19.47 | |||
| 50 | $ 18.10 | |||
| 100 | $ 16.86 | |||
| 250 | $ 15.40 | |||
| 500 | $ 14.42 | |||
Description
General part information
HCSD-12 Series
24 Position Cable Assembly Rectangular Socket to Socket 1.42' (432.00mm)
Documents
Technical documentation and resources
