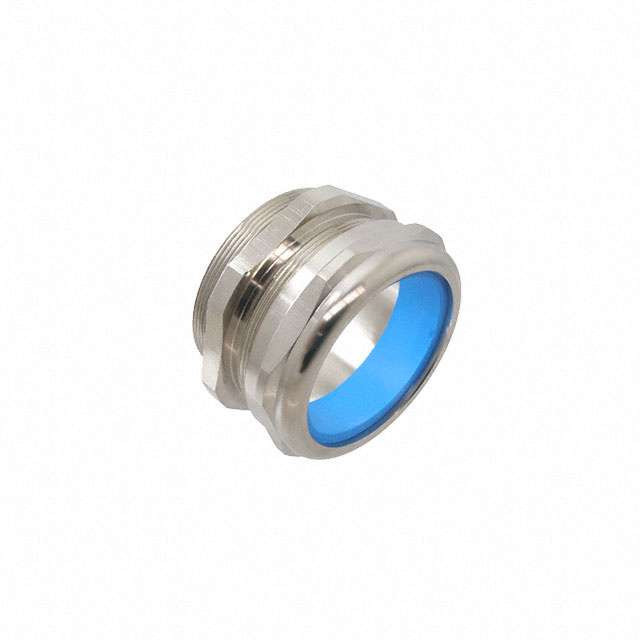

96579.6

Active

Pflitsch

CABLE FEEDTHROUGH 70.1-76.96MM

Search across all available documentation for this part.

Active

Pflitsch

CABLE FEEDTHROUGH 70.1-76.96MM

Technical Specifications

Parameters and characteristics for this part

Specification	96579.6

Color	Silver
Includes	Sealing Ring
Ingress Protection	IP68 - Dust Tight, Waterproof; NEMA 4X
Material	Brass, Nickel Plated
Operating Temperature [Max]	300 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	3.03 in
Outside Cable Diameter (Max) [Max] [diameter]	76.96 mm
Outside Cable Diameter (Min) [Min] [diameter]	2.76 in
Outside Cable Diameter (Min) [Min] [diameter]	70.1 mm
Panel Hole Size	85.1 mm
Panel Hole Size	3.35 in
Thread Length	14.99 mm
Thread Length	0.59 in
Thread Size	M85x2
Type	Cable Feedthrough

Part	Color	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Thread Size	Ingress Protection	Panel Hole Size	Panel Hole Size	Material	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Includes	Type	Thread Length	Thread Length
Pflitsch 96579.6	Silver	3.03 in	76.96 mm	M85x2	IP68 - Dust Tight Waterproof; NEMA 4X	85.1 mm	3.35 in	Brass Nickel Plated	2.76 in	70.1 mm	-40 °C	300 °C	Sealing Ring	Cable Feedthrough	14.99 mm	0.59 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Feedthrough Brass, Nickel Plated M85x2 Silver
