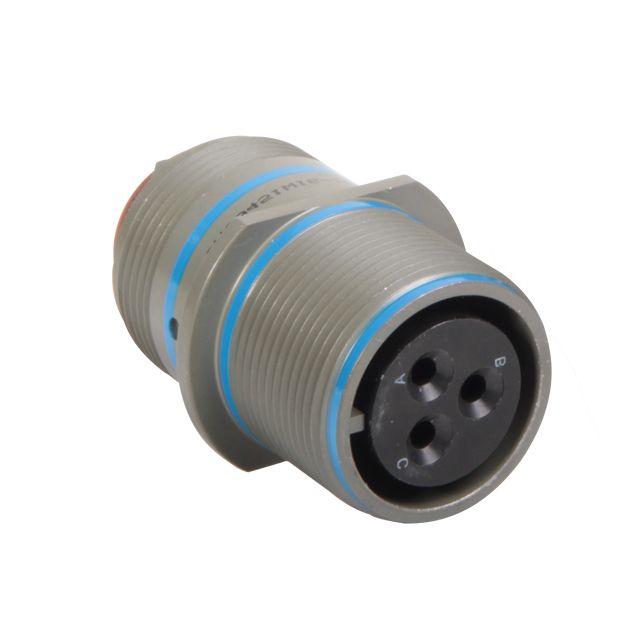

AE550KT22-22PY-LC

Active

Conesys

CONN RCP HSG ML 4P INLINE PNL MT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AE550KT22-22PY-LC

Active

Conesys

CONN RCP HSG ML 4P INLINE PNL MT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 60.85
		10	$ 52.73
		25	$ 46.53
		50	$ 41.63
		100	$ 36.51

Description

General part information

AE550K Series

4 Position Circular Connector Receptacle Housing Free Hanging (In-Line); Panel Mount

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AE550KT22-22PY-LC	AE550K Series

Connector Type	Receptacle Housing	Receptacle Housing
Contact Size	8	8 - 12
Contact Type	Crimp	Crimp
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mounting Feature	Flange	Flange
Mounting Type	Free Hanging (In-Line), Panel Mount	Free Hanging (In-Line), Panel Mount
Note	Contacts Not Included	Contacts Not Included
Number of Positions	4	4 - 8
Operating Temperature [Max]	347 °F	347 °F
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	Y	N, X, Y, W
Qualification	MIL-DTL-5015 Series III	MIL-DTL-5015 Series III
Shell Finish	Cadmium	Cadmium
Shell Material	Steel	Steel
Shell Size - Insert [Max]	22	22 - 23
Shell Size - Insert [Min]	22	22
Shielding	Shielded	Shielded
Type	For Male Pins	For Male Pins

AE550K Series

CONN RCP HSG ML 4P INLINE PNL MT

Part	Note	Shielding	Connector Type	Mounting Feature	Contact Size	Contact Type	Qualification	Ingress Protection	Mounting Type	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Shell Finish	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Shell Material	Type
Conesys AE550KT22-22P-LC	Contacts Not Included	Shielded	Receptacle Housing	Flange	8	Crimp	MIL-DTL-5015 Series III	IP67 - Dust Tight, Waterproof	Free Hanging (In-Line), Panel Mount	22	22	Cadmium	N	-55 °C	347 °F	4	Steel	For Male Pins
Conesys AE550KT22-22PX-LC	Contacts Not Included	Shielded	Receptacle Housing	Flange	8	Crimp	MIL-DTL-5015 Series III	IP67 - Dust Tight, Waterproof	Free Hanging (In-Line), Panel Mount	22	22	Cadmium	X	-55 °C	347 °F	4	Steel	For Male Pins
Conesys AE550KT22-22PY-LC	Contacts Not Included	Shielded	Receptacle Housing	Flange	8	Crimp	MIL-DTL-5015 Series III	IP67 - Dust Tight, Waterproof	Free Hanging (In-Line), Panel Mount	22	22	Cadmium	Y	-55 °C	347 °F	4	Steel	For Male Pins
Conesys AE550KT22-23PY-LC	Contacts Not Included	Shielded	Receptacle Housing	Flange	12	Crimp	MIL-DTL-5015 Series III	IP67 - Dust Tight, Waterproof	Free Hanging (In-Line), Panel Mount	22	23	Cadmium	Y	-55 °C	347 °F	8	Steel	For Male Pins
Conesys AE550KT22-23PW-LC	Contacts Not Included	Shielded	Receptacle Housing	Flange	12	Crimp	MIL-DTL-5015 Series III	IP67 - Dust Tight, Waterproof	Free Hanging (In-Line), Panel Mount	22	23	Cadmium	W	-55 °C	347 °F	8	Steel	For Male Pins
Conesys AE550KT22-23P-LC	Contacts Not Included	Shielded	Receptacle Housing	Flange	12	Crimp	MIL-DTL-5015 Series III	IP67 - Dust Tight, Waterproof	Free Hanging (In-Line), Panel Mount	22	23	Cadmium	N	-55 °C	347 °F	8	Steel	For Male Pins
