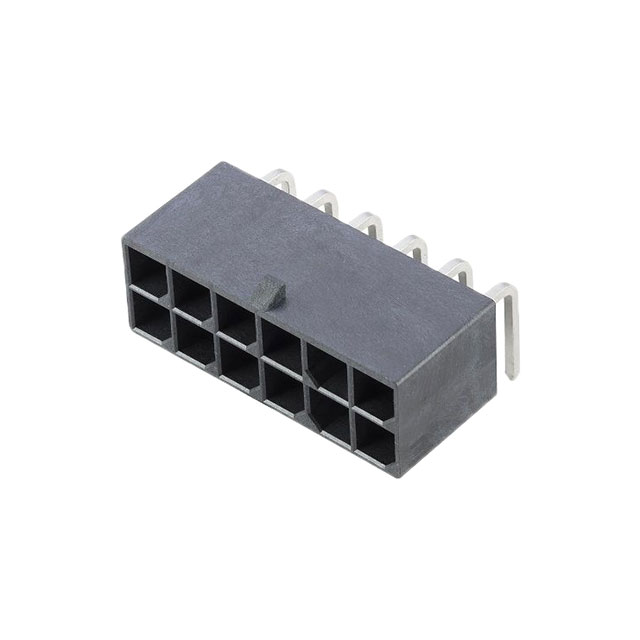

10146997-10200LF
ActiveAmphenol ICC (FCI)
CONN 5.70MM RIGHT ANGLE TH
Deep-Dive with AI
Search across all available documentation for this part.
10146997-10200LF
ActiveAmphenol ICC (FCI)
CONN 5.70MM RIGHT ANGLE TH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10146997-10200LF |
|---|---|
| Applications | Telecommunications, General Purpose, Military, Medical |
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 2.54 çm |
| Contact Finish Thickness - Mating | 100 çin |
| Contact Finish Thickness - Post | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin |
| Contact Length - Post | 3.6 mm |
| Contact Length - Post | 0.142 in |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Features | Glow Wire Compliant, Board Guide |
| Insulation Color | Black |
| Insulation Height | 14.53 mm |
| Insulation Height | 0.572 in |
| Insulation Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.224 in |
| Pitch - Mating | 5.7 mm |
| Row Spacing - Mating | 0.224 in |
| Row Spacing - Mating | 5.7 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.12 | |
| 10 | $ 2.65 | |||
| 25 | $ 2.48 | |||
| 50 | $ 2.36 | |||
| 100 | $ 2.25 | |||
| 250 | $ 2.11 | |||
| 672 | $ 1.97 | |||
| 1344 | $ 1.87 | |||
| 2688 | $ 1.78 | |||
Description
General part information
10146997 Series
Connector Header Through Hole, Right Angle 10 position 0.224" (5.70mm)
