SIT9003AI-43-33DO-7.62750Y
ActiveSiTime

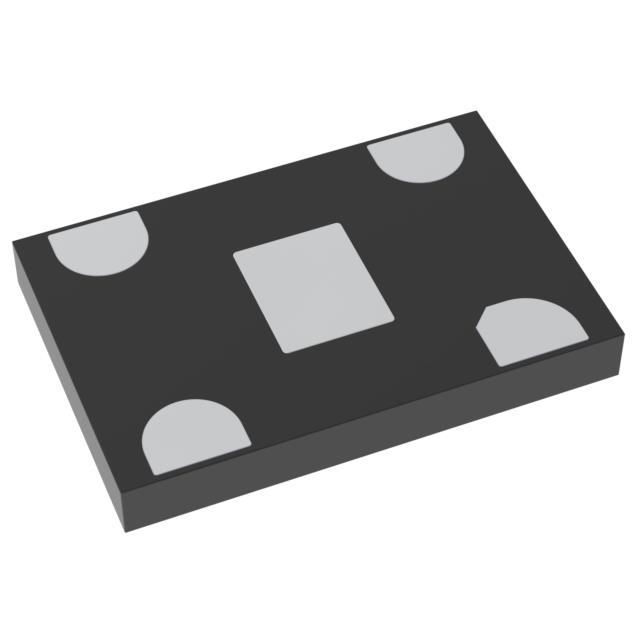

MEMS OSC XO 7.6275MHZ LVCM LVTTL
Deep-Dive with AI
Search across all available documentation for this part.
SIT9003AI-43-33DO-7.62750Y
ActiveSiTime
MEMS OSC XO 7.6275MHZ LVCM LVTTL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SIT9003AI-43-33DO-7.62750Y |
|---|---|
| Base Resonator | MEMS |
| Current - Supply (Disable) (Max) | 4.3 µA |
| Current - Supply (Max) [Max] | 4.1 mA |
| Frequency | 7.6275 MHz |
| Frequency Stability | 50 ppm |
| Height - Seated (Max) [Max] | 0.039 " |
| Height - Seated (Max) [Max] | 1 mm |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | LVCMOS, LVTTL |
| Package / Case | 4-SMD, No Lead Exposed Pad |
| Size / Dimension [x] | 7 mm |
| Size / Dimension [x] | 0.276 " |
| Size / Dimension [y] | 5 mm |
| Size / Dimension [y] | 0.197 " |
| Spread Spectrum Bandwidth | -1 % |
| Type | XO (Standard) |
| Voltage - Supply | 3.3 V |
SIT9003 Series
...
| Part | Current - Supply (Max) [Max] | Type | Base Resonator | Frequency | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Voltage - Supply | Mounting Type | Function | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Frequency Stability | Output | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Spread Spectrum Bandwidth | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Current - Supply (Disable) (Max) | Current - Supply (Disable) (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
4.1 mA | XO (Standard) | MEMS | 25 MHz | -20 C | 70 °C | 4-SMD No Lead | 3.3 V | Surface Mount | Enable/Disable | 7 mm | 5 mm | 0.276 " | 0.197 " | 50 ppm | LVCMOS LVTTL | 0.039 " | 1 mm | ||||||
4.1 mA | XO (Standard) | MEMS | 32 MHz | -40 °C | 85 °C | 4-SMD No Lead | 3.3 V | Surface Mount | 5 mm | 3.2 mm | 0.197 in | 0.126 " | 50 ppm | LVCMOS LVTTL | 0.25 % | 0.8 mm | 0.031 " | ||||||
4.1 mA | XO (Standard) | MEMS | 7.6275 MHz | -40 °C | 85 °C | 4-SMD No Lead Exposed Pad | 3.3 V | Surface Mount | 7 mm | 5 mm | 0.276 " | 0.197 " | 50 ppm | LVCMOS LVTTL | 0.039 " | 1 mm | -1 % | 4.3 µA | |||||
4.1 mA | XO (Standard) | MEMS | 66.66666 MHz | -20 C | 70 °C | 4-SMD No Lead | 3.3 V | Surface Mount | 2.5 mm | 2 mm | 0.098 " | 0.079 in | 50 ppm | LVCMOS LVTTL | -1 % | 0.8 mm | 0.031 " | 4.3 µA | |||||
3.5 mA | XO (Standard) | MEMS | 45 MHz | -40 °C | 85 °C | 4-SMD No Lead | 1.8 V | Surface Mount | 2.5 mm | 2 mm | 0.098 " | 0.079 in | 50 ppm | LVCMOS LVTTL | -1 % | 0.8 mm | 0.031 " | 0.8 µA | |||||
4.1 mA | XO (Standard) | MEMS | 14.7456 MHz | -40 °C | 85 °C | 4-SMD No Lead | 3.3 V | Surface Mount | 2.5 mm | 2 mm | 0.098 " | 0.079 in | 50 ppm | LVCMOS LVTTL | 0.25 % | 0.8 mm | 0.031 " | ||||||
4.1 mA | XO (Standard) | MEMS | 50 MHz | -40 °C | 85 °C | 4-SMD No Lead | 3.3 V | Surface Mount | Enable/Disable | 2.5 mm | 2 mm | 0.098 " | 0.079 in | 50 ppm | LVCMOS LVTTL | 0.8 mm | 0.031 " | 4.3 µA | |||||
4.1 mA | XO (Standard) | MEMS | 33 MHz | -20 C | 70 °C | 4-SMD No Lead | 3.3 V | Surface Mount | Enable/Disable | 7 mm | 5 mm | 0.276 " | 0.197 " | 50 ppm | LVCMOS LVTTL | 0.039 " | 1 mm | ||||||
4.1 mA | XO (Standard) | MEMS | 24 MHz | -20 C | 70 °C | 4-SMD No Lead | 3.3 V | Surface Mount | Enable/Disable | 2.5 mm | 2 mm | 0.098 " | 0.079 in | 100 ppm | LVCMOS LVTTL | 0.8 mm | 0.031 " | 4.3 µA | |||||
4.1 mA | XO (Standard) | MEMS | 12 MHz | -20 C | 70 °C | 4-SMD No Lead | 3.3 V | Surface Mount | 3.2 mm | 2.5 mm | 0.126 in | 0.098 in | 50 ppm | LVCMOS LVTTL | -1 % | 0.8 mm | 0.031 " | 4.3 µA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1000 | $ 2.23 | |
Description
General part information
SIT9003 Series
7.6275 MHz XO (Standard) LVCMOS, LVTTL Oscillator 3.3V 4-SMD, No Lead Exposed Pad
