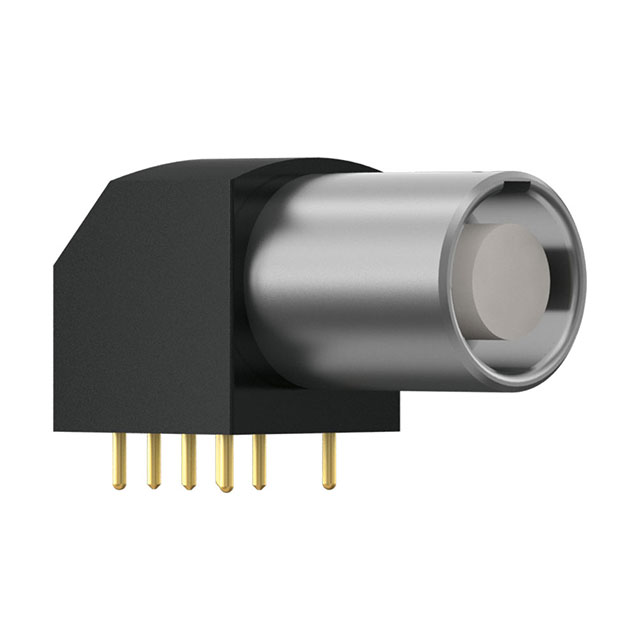

GF1L0C-P05QJ00-0000

Active

ODU

CONN RCPT FMALE 5POS GOLD SOLDER

Search across all available documentation for this part.

Active

ODU

CONN RCPT FMALE 5POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	GF1L0C-P05QJ00-0000

Applications	Military, Medical, Industrial, Testing Equipment & Measurement
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	7.5 A
Fastening Type	Push-Pull
Features	Ground
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Mounting Type	Through Hole, Right Angle, Panel Mount
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Orientation	0
Primary Material	Metal
Shell Finish	Chrome over Nickel
Shell Material	Brass
Shell Size - Insert	1
Termination	Solder

Part	Connector Type	Applications	Shell Size - Insert	Fastening Type	Insert Material	Primary Material	Mounting Type	Contact Finish - Mating	Contact Material	Number of Positions	Current Rating (Amps)	Shell Finish	Features	Operating Temperature [Min]	Operating Temperature [Max]	Color	Ingress Protection	Termination	Shell Material
ODU GF1L0C-P07QF00-0000	Receptacle Female Sockets	Industrial Medical Military Testing Equipment & Measurement	1	Push-Pull	Polyetheretherketone (PEEK)	Metal	Panel Mount Right Angle Through Hole	Gold	Brass	7	6 A	Chrome over Nickel	Ground	-40 °C	120 °C	Silver	IP50	Solder	Brass
ODU GF1L0C-P05QJ00-0000	Receptacle Female Sockets	Industrial Medical Military Testing Equipment & Measurement	1	Push-Pull	Polyetheretherketone (PEEK)	Metal	Panel Mount Right Angle Through Hole	Gold	Brass		7.5 A	Chrome over Nickel	Ground	-40 °C	120 °C	Silver	IP50	Solder	Brass
ODU GF1L0C-P03QP00-0000	Receptacle Female Sockets	Industrial Medical Military Testing Equipment & Measurement	1	Push-Pull	Polyetheretherketone (PEEK)	Metal	Panel Mount Right Angle Through Hole	Gold	Brass		12 A	Chrome over Nickel	Ground	-40 °C	120 °C	Silver	IP50	Solder	Brass
ODU GF1L0C-P10QC00-0000	Receptacle Female Sockets	Industrial Medical Military Testing Equipment & Measurement	1	Push-Pull	Polyetheretherketone (PEEK)	Metal	Panel Mount Right Angle Through Hole	Gold	Brass	10	4 A	Chrome over Nickel	Ground	-40 °C	120 °C	Silver	IP50	Solder	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Receptacle, Female Sockets Solder
