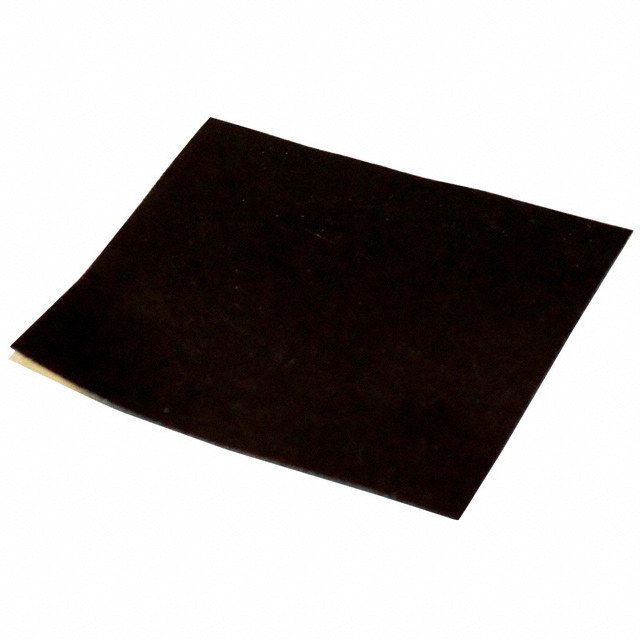

Specification	T62-1-24-24-0.16

Adhesive	Adhesive - One Side
Color	Black
Material	Graphite
Outline Length	24 mm
Outline Width	24 mm
Shape	Square
Shelf Life	12 Months
Shelf Life Start	Date of Purchase
Thermal Conductivity	15 W/m-K
Thickness	0.0063 in
Type	Graphite-Pad, Sheet

T62-1 Series

Part	Shelf Life Start	Shelf Life	Outline Width	Outline Length	Adhesive	Type	Shape	Material	Color	Thickness	Thermal Conductivity	Outline Diameter
t-Global Technology T62-1-15-15-0.16	Date of Purchase	12 Months	15 mm	15 mm	Adhesive - One Side	Graphite-Pad Sheet	Square	Graphite	Black	0.0063 in	15 W/m-K
t-Global Technology T62-1-110-80-0.16	Date of Purchase	12 Months	80 mm	110 mm		Graphite-Pad Sheet	Rectangular	Graphite	Black	0.0063 in	15 W/m-K
t-Global Technology T62-1-50-0.16	Date of Purchase	12 Months			Adhesive - One Side	Graphite-Pad Sheet	Round	Graphite	Black	0.0063 in	15 W/m-K	50 mm
t-Global Technology T62-1-100-100-0.16	Date of Purchase	12 Months	100 mm	100 mm	Adhesive - One Side	Graphite-Pad Sheet	Square	Graphite	Black	0.0063 in	15 W/m-K
t-Global Technology T62-1-65-0.16	Date of Purchase	12 Months			Adhesive - One Side	Graphite-Pad Sheet	Round	Graphite	Black	0.0063 in	15 W/m-K	65 mm
t-Global Technology T62-1-150-150-0.16	Date of Purchase	12 Months	150 mm	150 mm	Adhesive - One Side	Graphite-Pad Sheet	Square	Graphite	Black	0.0063 in	15 W/m-K
t-Global Technology T62-1-79.4-43.69-0.16	Date of Purchase	12 Months	43.69 mm	79.4 mm		Graphite-Pad Sheet	Rectangular	Graphite	Black	0.0063 in	15 W/m-K
t-Global Technology T62-1-24-24-0.16	Date of Purchase	12 Months	24 mm	24 mm	Adhesive - One Side	Graphite-Pad Sheet	Square	Graphite	Black	0.0063 in	15 W/m-K
t-Global Technology T62-1-30-30-0.16	Date of Purchase	12 Months	30 mm	30 mm	Adhesive - One Side	Graphite-Pad Sheet	Square	Graphite	Black	0.0063 in	15 W/m-K
t-Global Technology T62-1-310-310-0.16	Date of Purchase	12 Months	310 mm	310 mm	Adhesive - One Side	Graphite-Pad Sheet	Square	Graphite	Black	0.0063 in	15 W/m-K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet

Die-Cut Tolerence Guide

Thermal Pad Tolerance

T62-1-24-24-0.16 | Datasheet
