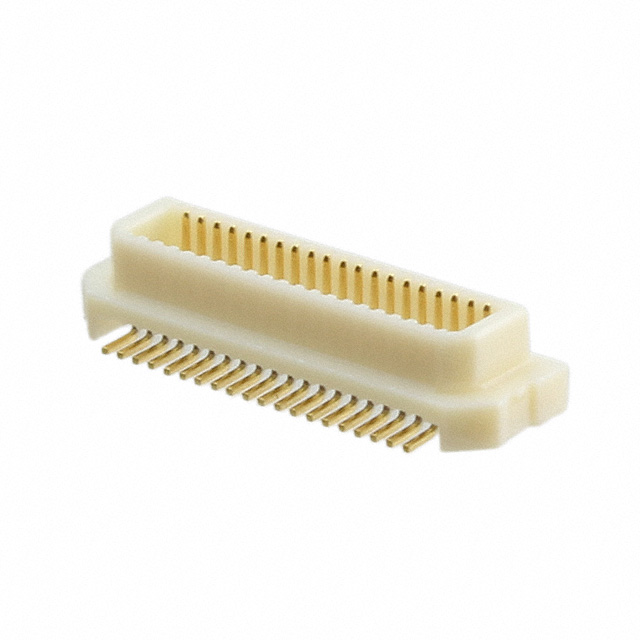

AXK640247YG
ObsoletePanasonic Electric Works
CONN HDR 40POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
AXK640247YG
ObsoletePanasonic Electric Works
CONN HDR 40POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AXK640247YG |
|---|---|
| Connector Type | Header, Outer Shroud Contacts |
| Contact Finish | Gold |
| Height Above Board [z] | 2.9 mm |
| Height Above Board [z] | 0.114 " |
| Mated Stacking Heights | 3.5 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.68 | |
| 10 | $ 2.05 | |||
| 25 | $ 1.84 | |||
| 50 | $ 1.70 | |||
| 100 | $ 1.58 | |||
| 250 | $ 1.43 | |||
| 500 | $ 1.33 | |||
Description
General part information
AXK640247 Series
40 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
